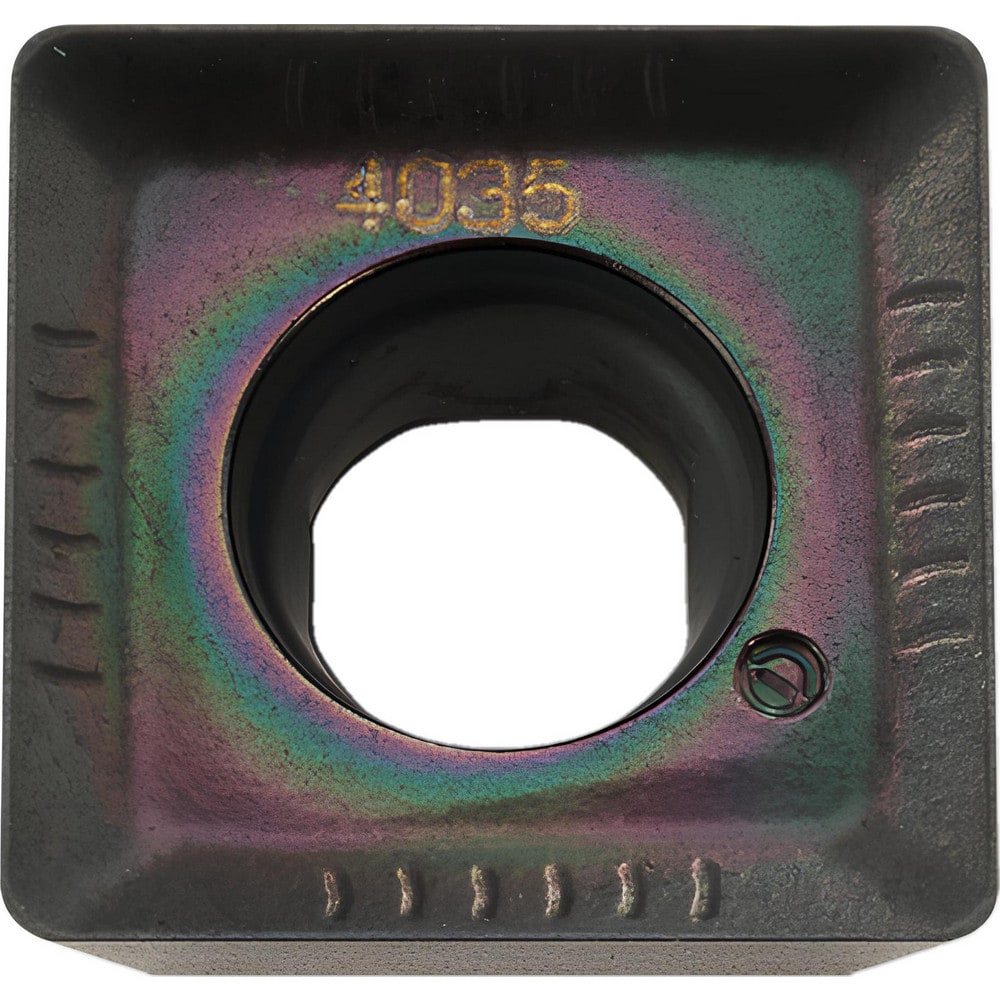

Brand: Ingersoll Cutting Tools / Part #: 2910126
Item #: 67319152
Brand: Ingersoll Cutting Tools
Model #: 2910126
Product Specifications
| Insert Style | SDMS |
| Insert Size Code | 130615 |
| Insert Material | Carbide |
| Manufacturer Grade | IN4035 |
| Inscribed Circle (mm) | 13.00 |
| Corner Radius (Decimal Inch) | 0.0600 |
| Insert Hand | Right Hand |
| Series | SDMS |
| Coating Process | PVD |
| Maximum Depth of Cut (mm) | 11.40 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Ansi Code | SDMS130615N-FL K |
| Rake Angle | 15.000 |
| Manufacturers Catalog Number | SDMS130615N-FL K IN4035 |
| Cutter Series Compatibility | 25J3P |
| Chip Breaker | FL |
| Cutting Direction | Right Hand |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | AlCrO; TiAlN |
| Included Angle Degree | 90 |
| Length | 13.00 |
| Width (Mm - 2 Decimals) | 13.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2400 |
| Multi-Use Tool | No |
