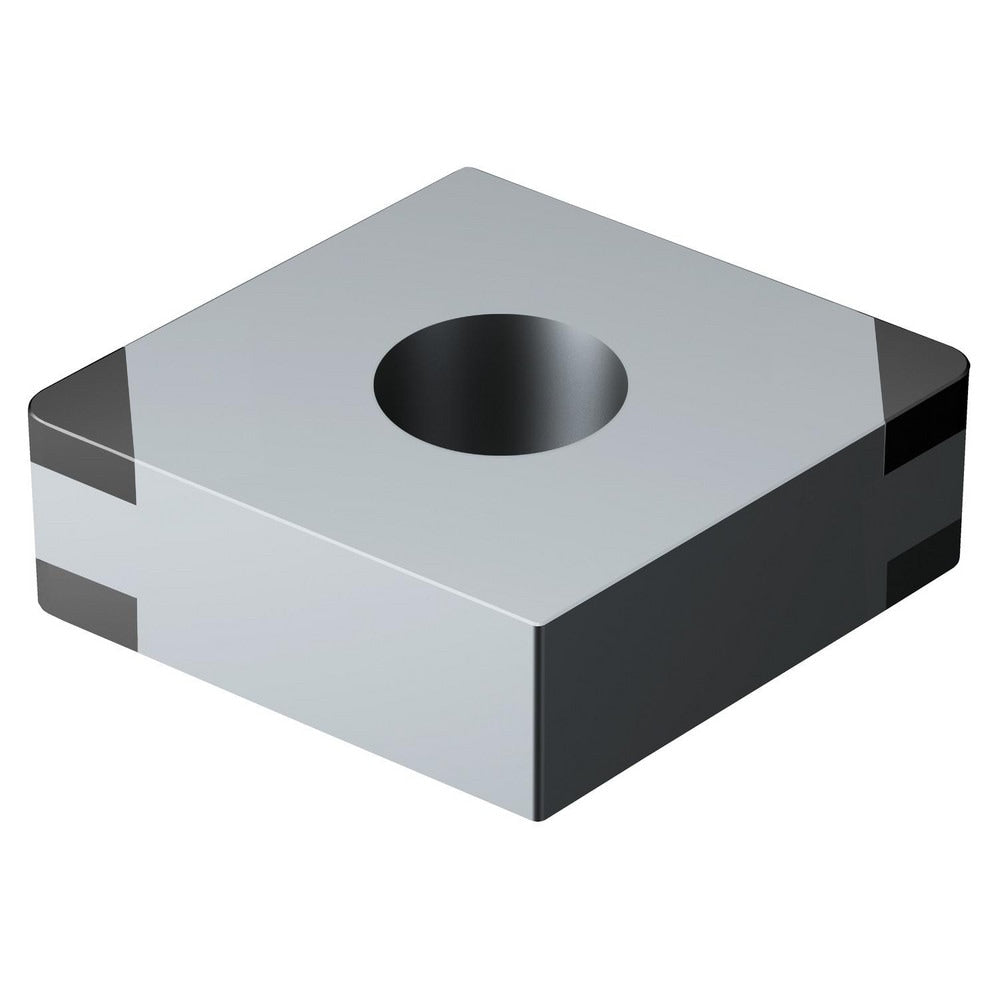

Brand: Sandvik Coromant / Part #: 8319599
Item #: 67619239
Brand: Sandvik Coromant
Model #: 8319599
Product Specifications
| Insert Style | CNGA |
| Insert Shape Code | C |
| Insert Size Code | 1204 |
| Insert Shape | Diamond 80? |
| Coating/Finish | AlTiCrN |
| Manufacturer Grade | 7125 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Insert Material | Cubic Boron Nitride |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Clearance Code | N |
| Tolerance Code | G |
| Included Angle | 89.00 |
| Relief Angle | 0.000 |
| Series | T-Max? P |
| Coating Process | PVD |
| Wiper Edge | Yes |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Iso Code | CNGA120412S01520HWG 7125 |
| Manufacturers Catalog Number | CNGA120412S01520HWG 7125 |
| Cutting Direction | Neutral |
| Chip Breaker | WG |
| Cutting Edge Style | Negative Land/ER Treated |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Width (Mm - 2 Decimals) | 12.70 |
