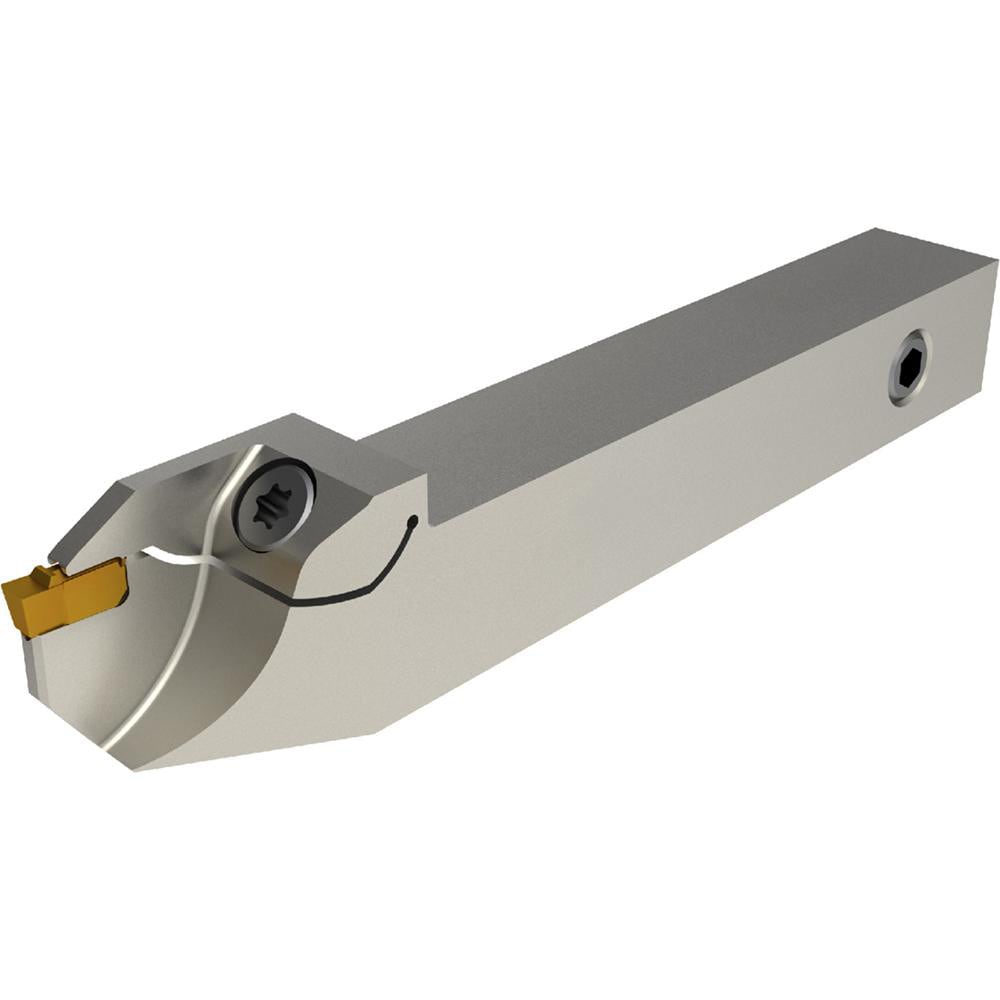

Brand: Widia / Part #: 6766068
Item #: 98285703
Brand: Widia
Model #: 6766068
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (mm) | 16.00 |
| Hand of Holder | Left Hand |
| Maximum Groove Width (mm) | 3.00 |
| Minimum Groove Width (mm) | 3.00 |
| Toolholder Style | WGCSC |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 0300 |
| Insert Compatibility | WG0300M03P02 |
| Shank Height (mm) | 16.00 |
| Shank Length (mm) | 97.500 |
| Shank Width/Diameter (mm) | 16.00 |
| Series | WGCSCF |
| Overall Length (mm) | 125.0000 |
| Cutting Tool Application | Grooving; Facing; Cut-Off; Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6299 |
| Head Height (mm) | 20.750 |
| Head Length (mm) | 27.50 |
| Primary Workpiece Material | Universal |
| Insert Seat Size | 3.0 |
| Coolant Through | Yes |
