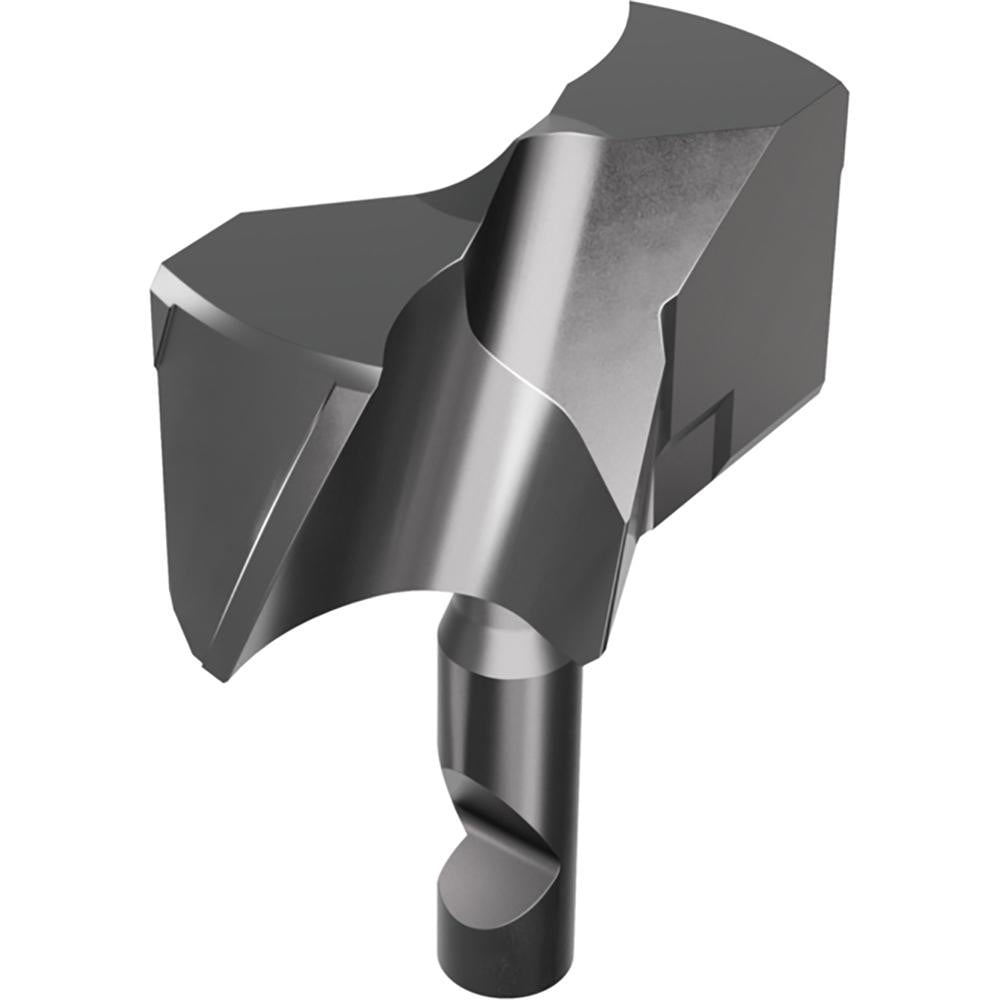

Brand: Widia / Part #: 6693115
Item #: 02465110
Brand: Widia
Model #: 6693115
Product Specifications
| Maximum Drill Diameter (mm) | 18.00 |
| Point Angle | 150.00 |
| Diameter (mm) | 18.0000 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | WP40PD |
| Material Grade | 11% Cobalt |
| Cutting Direction | Right Hand |
| Series | TDMX Drill |
| Coating Process | PVD |
| Insert Geometry | FPE |
| Insert Seat Size | C |
| Primary Workpiece Material | Hi-Temp Alloys; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Height (mm) | 24.8100 |
| Head Length (mm) | 24.81 |
| Cutting Diameter (mm) | 18.00 |
| Drill Point Angle | 150 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 24.8100 |
| ISO Number | TDMX18000FPEM |
| Coolant Through | No |
| Overall Length/Projection (mm) | 24.81 |
| Minimum Cutting Diameter (mm) | 18.00 |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 0; 150 |
| Number Of Flutes | 2 |
