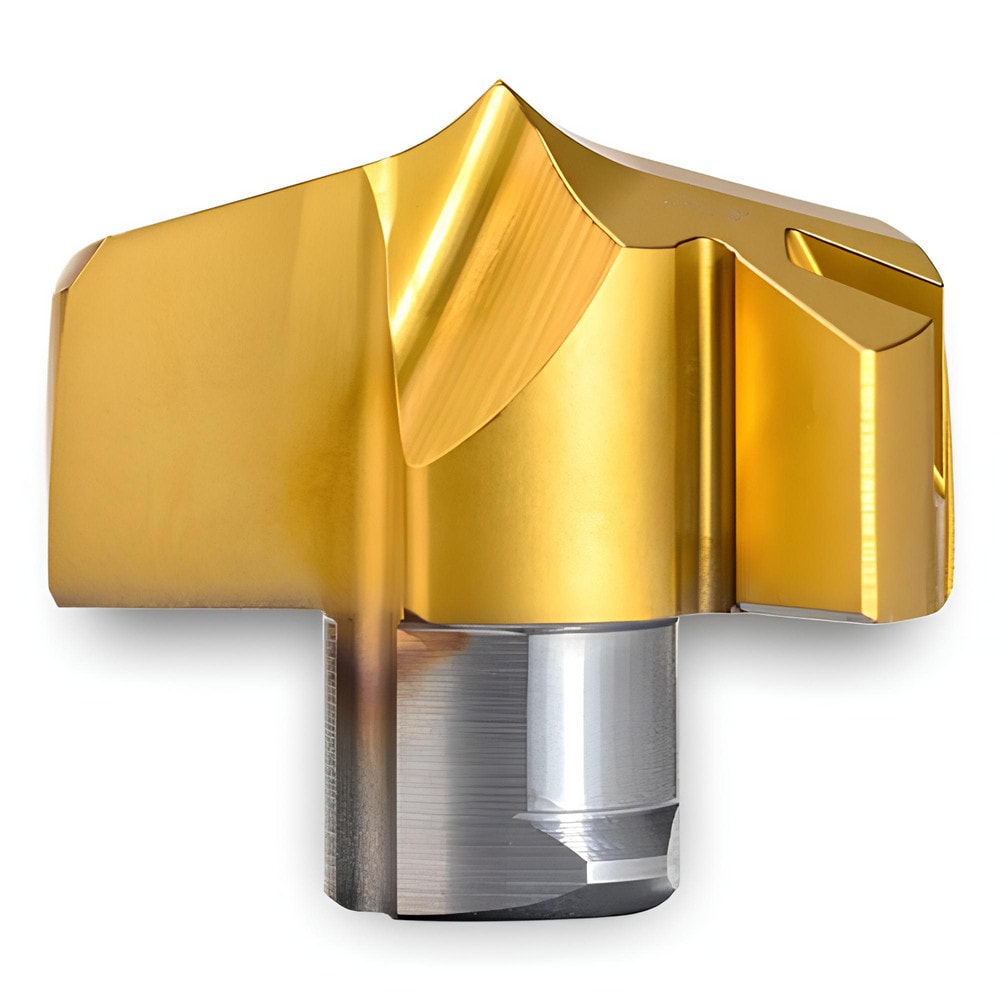

Brand: Ingersoll Cutting Tools / Part #: 6178346
Item #: 95248753
Brand: Ingersoll Cutting Tools
Model #: 6178346
Product Specifications
| Maximum Drill Diameter (mm) | 13.60 |
| Point Angle | 140.00 |
| Diameter (mm) | 13.6000 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IN2505 |
| Cutting Direction | Right Hand |
| Series | TPC |
| Coating Process | PVD |
| Insert Seat Size | 13.5 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Height (mm) | 7.5900 |
| Head Length (mm) | 7.59 |
| Cutting Diameter (mm) | 13.60 |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Twist |
| ISO Number | TPC1360R01 IN2505 |
| Coolant Through | Yes |
| Flute Length (mm) | 4.67 |
| Point Type | Self Centering |
| Overall Length/Projection (mm) | 7.59 |
| Spiral Type | Regular |
| Style | TPC |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
