Brand: Widia / Part #: 2071317
Item #: 99718595
Brand: Widia
Model #: 2071317
Product Specifications

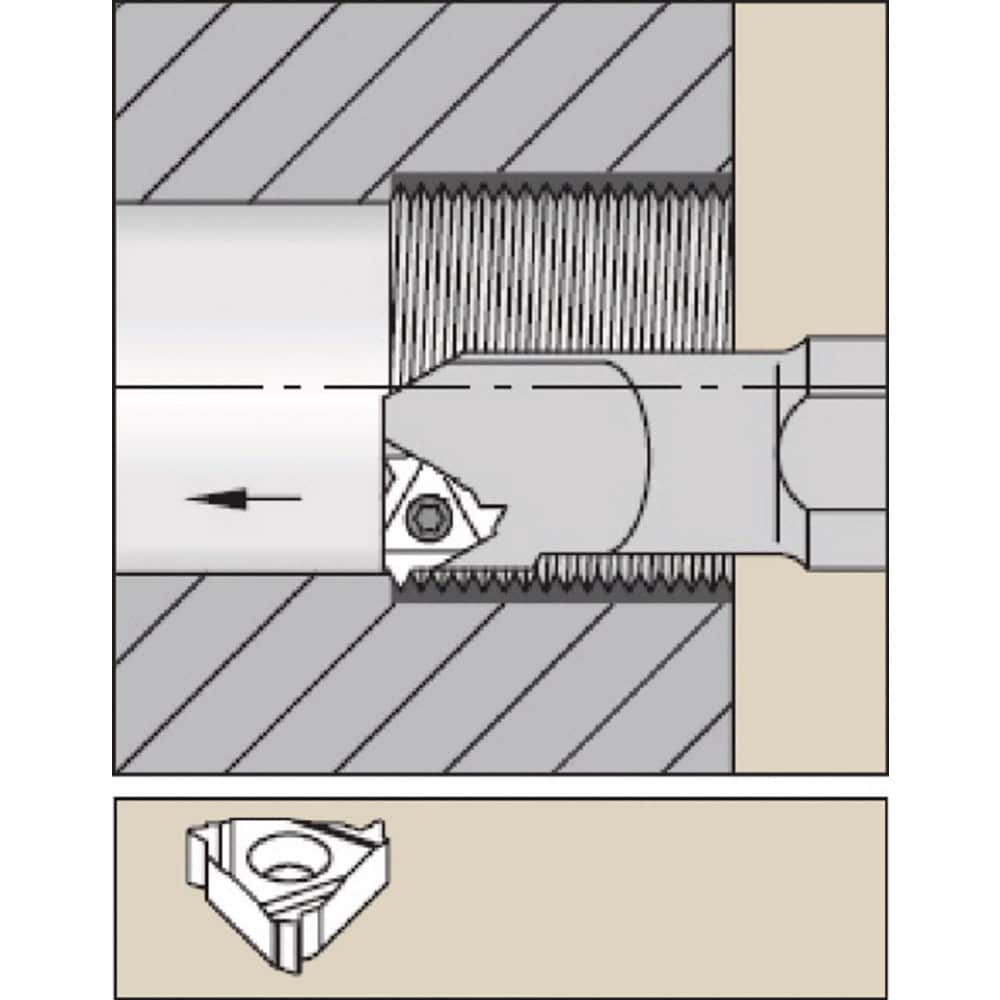

| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Compatible Insert Size Code | 3 |
| Shank Width/Diameter (mm) | 20.00 |
| Toolholder Style | NVR |
| Insert Compatibility | LT16NL |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Insert Holding Method | Clamp |
| Shank Height (mm) | 18.82 |
| Shank Length (mm) | 140.000 |
| Overall Length (mm) | 180.0000 |
| Minimum Bore Diameter (mm) | 20.00 |
| Series | N/A-VR |
| Multi-use Tool | No |
| Cutting Tool Application | Threading |
| Head Length (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 1.50 |
| Adjustable Overhang | Yes |
| Maximum Overhang (Inch) | 1.5748 |
| Back of Bar to Cutting Edge (mm) | 21.50 |
| Center to Cutting Edge (mm) | 11.50 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (mm) | 9.53 |
| Primary Workpiece Material Code | P; S; H; K; M; N; O |
| Coolant Hole Diameter (Decimal Inch) | 0.1772 |
| Toolholder Material | Steel |
| Insert Thickness (Decimal Inch) | 0.1350 |
| Style | NVR |
| Coolant Through | Yes |
