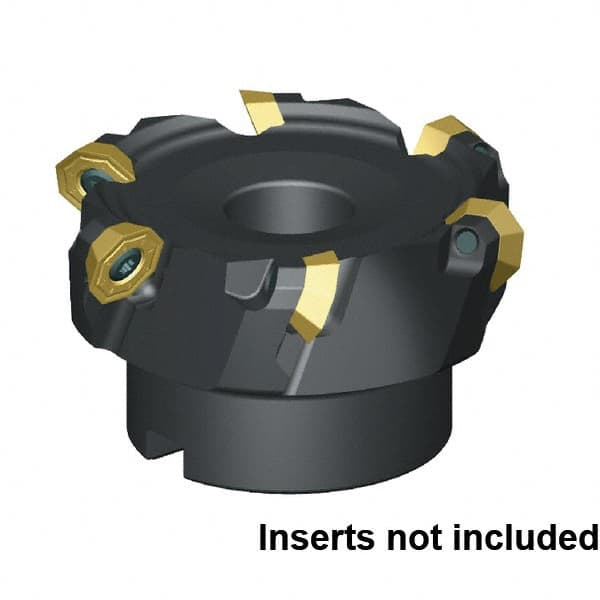

Kennametal - 7 Inserts, 63mm Cut Diam, 22mm Arbor Diam, 3.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 45° Lead Angle, 43mm High, OFPT06L5AFENGB Insert Compatibility, Through Coolant, Series KSOM
Item #: 49963424
Brand: Kennametal
Model #: 5358931
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4810 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8660 |
| Lead Angle | 45 |
| Overall Height (mm) | 43.00 |
| Overall Height (Decimal Inch) | 1.6930 |
| Insert Compatibility | OFPT06L5AFENGB |
| Series | KSOM |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw/Clamp |
| Number of Flutes | 7 |
| Hub Diameter (mm) | 50.00 |
| Hub Diameter (Decimal Inch) | 1.9690 |
| Maximum Body Diameter (Decimal Inch) | 2.6550 |
| Maximum RPM | 10110 |
| Toolholder Material | Steel |
