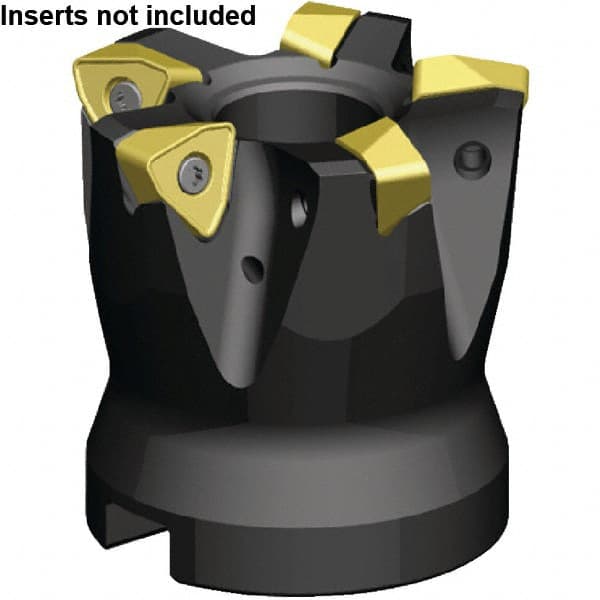

Kennametal - 6 Inserts, 66mm Cut Diam, 22mm Arbor Diam, 1.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 78° Lead Angle, 50mm High, WOEJ090512SRHD Insert Compatibility, Through Coolant, Series Kenfeed
Item #: 49963481
Brand: Kennametal
Model #: 5396015
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 66.00 |
| Cutting Diameter (Decimal Inch) | 2.6000 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8670 |
| Lead Angle | 78 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9690 |
| Insert Compatibility | WOEJ090512SRHD |
| Series | Kenfeed |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw/Clamp |
| Number of Flutes | 6 |
| Hub Diameter (mm) | 49.00 |
| Hub Diameter (Decimal Inch) | 1.9290 |
| Maximum Body Diameter (Decimal Inch) | 2.5200 |
| Maximum RPM | 19600 |
| Toolholder Material | Steel |
