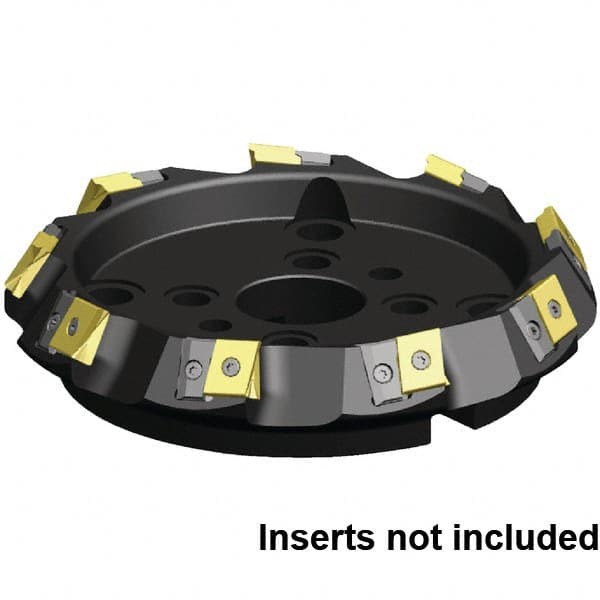

Kennametal - 10 Inserts, 315mm Cut Diam, 60mm Arbor Diam, 21.36mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 30° Lead Angle, 80mm High, LN_U221012PNSR-__ Insert Compatibility, Series MEGA 60
Item #: 49964174
Brand: Kennametal
Model #: 4147484
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 315.00 |
| Cutting Diameter (Decimal Inch) | 12.4020 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3622 |
| Lead Angle | 30 |
| Overall Height (mm) | 80.00 |
| Overall Height (Decimal Inch) | 3.1500 |
| Insert Compatibility | LN_U221012PNSR-__ |
| Series | MEGA 60 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 21.36 |
| Maximum Depth of Cut (Decimal Inch) | 0.8410 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw/Clamp |
| Number of Flutes | 10 |
| Hub Diameter (mm) | 225.00 |
| Hub Diameter (Decimal Inch) | 8.8580 |
| Maximum Body Diameter (Decimal Inch) | 13.3860 |
| Maximum RPM | 7010 |
| Toolholder Material | Steel |
