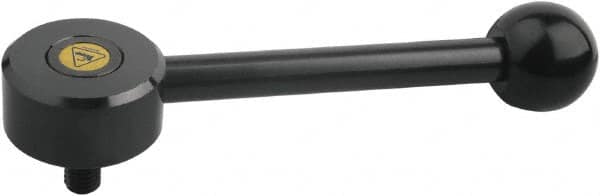

KIPP - M12, Steel Threaded Stud Adjustable Clamping Handle - 151.5mm OAL, 26mm High
Item #: 50028919
Brand: KIPP
Model #: K0114.2121X25
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | M12 |
| Overall Length (mm) | 151.50 |
| Handle Material | Steel |
| Components Finish/Coating | Black Oxide |
| Handle Finish/Coating | Black Oxide |
| Components Material | Steel |
| Handle Type | Adjustable Tension Lever Low-Profile |
| Handle Radius Length (Decimal Inch) | 5.1575 |
| Handle Arm Style | Plastic Ball Knob |
| Body Height (Decimal Inch) | 0.8661 |
| Body Diameter (mm) | 41.00 |
| Base Height (Decimal Inch) | 0.0787 |
| Base Diameter (Decimal Inch) | 0.7480 |
| Handle Arm Angle | Straight (0 ) |
| Body Height (mm) | 22.00 |
| Body Diameter (Decimal Inch) | 1.6142 |
| Base Height (mm) | 2.00 |
| Base Diameter (mm) | 19.00 |
| Thread Length (Decimal Inch) | 0.9843 |
| Overall Height (mm) | 26.00 |
| Overall Height (Decimal Inch) | 1.0236 |
| Thread Length (mm) | 25.00 |
| Handle Radius Length (mm) | 131.00 |
| Handle Color | Black |
