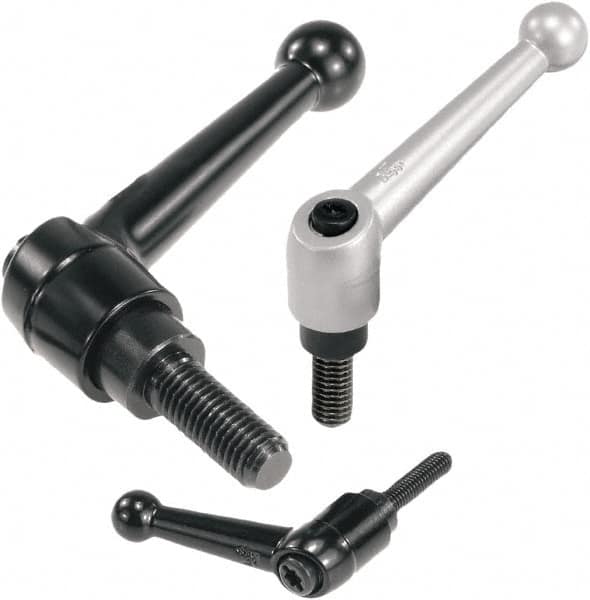

KIPP - 3/8-16, Zinc Threaded Stud Adjustable Clamping Handle - 108mm OAL, 72mm High
Item #: 50044502
Brand: KIPP
Model #: K0116.4A43X80
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | 3/8-16 |
| Overall Length (mm) | 108.00 |
| Handle Material | Zinc |
| Components Finish/Coating | Black Oxide |
| Handle Finish/Coating | Powder Coated |
| Components Material | Steel |
| Handle Type | Adjustable Handle |
| Handle Radius Length (Decimal Inch) | 3.7402 |
| Handle Arm Style | Ball End |
| Body Height (Decimal Inch) | 1.6732 |
| Body Diameter (mm) | 26.00 |
| Base Height (Decimal Inch) | 0.3937 |
| Base Diameter (Decimal Inch) | 0.7480 |
| Handle Arm Angle | 20 Angle |
| Body Height (mm) | 42.50 |
| Body Diameter (Decimal Inch) | 1.0236 |
| Base Height (mm) | 10.00 |
| Base Diameter (mm) | 19.00 |
| Thread Length (Decimal Inch) | 3.1496 |
| Overall Height (mm) | 72.00 |
| Overall Height (Decimal Inch) | 2.8347 |
| Thread Length (mm) | 80.00 |
| Handle Radius Length (mm) | 95.00 |
| Handle Color | Silver |
