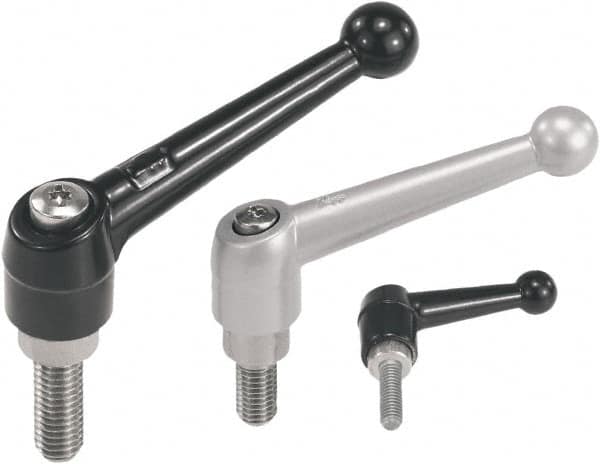

KIPP - 3/8-16, Zinc Threaded Stud Adjustable Clamping Handle - 73mm OAL, 49.5mm High
Item #: 50045335
Brand: KIPP
Model #: K0117.2A43X40
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | 3/8-16 |
| Overall Length (mm) | 73.00 |
| Handle Material | Zinc |
| Components Finish/Coating | Natural |
| Handle Finish/Coating | Powder Coated |
| Components Material | Stainless Steel |
| Handle Type | Adjustable Handle |
| Handle Radius Length (Decimal Inch) | 2.5197 |
| Handle Arm Style | Ball End |
| Body Height (Decimal Inch) | 1.1221 |
| Body Diameter (mm) | 18.50 |
| Base Height (Decimal Inch) | 0.2559 |
| Base Diameter (Decimal Inch) | 0.5315 |
| Handle Arm Angle | 20 Angle |
| Body Height (mm) | 28.50 |
| Body Diameter (Decimal Inch) | 0.7283 |
| Base Height (mm) | 6.50 |
| Base Diameter (mm) | 13.50 |
| Thread Length (Decimal Inch) | 1.5748 |
| Overall Height (mm) | 49.50 |
| Overall Height (Decimal Inch) | 1.9488 |
| Thread Length (mm) | 40.00 |
| Handle Radius Length (mm) | 64.00 |
| Handle Color | Silver |
