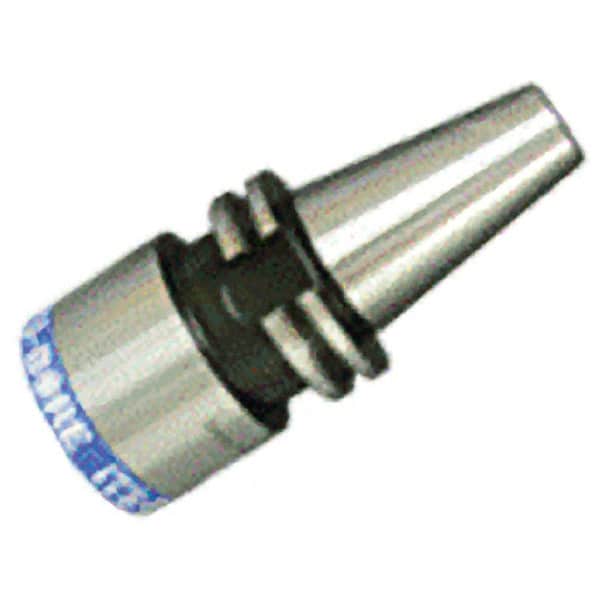

Iscar - DIN69871-40 Outside Taper, MB40 Inside Modular Connection, DIN69871 to MB Taper Adapter - 120mm Projection, 44.5mm Nose Diam, 188.4mm OAL, Through Coolant
Item #: 50065382
Brand: Iscar
Model #: 4559214
Exact Tooling IR#: 04
Features and Benefits
Taper adapters are used for holding a tapered shank or toolholder.
| Product Specifications | |
|---|---|
| Type | Taper Adapter |
| Taper Adapter Type | DIN69871 to MB |
| Outside Taper Size | DIN69871-40 |
| Inside Modular Connection Size | MB40 |
| Projection (mm) | 120.00 |
| Through Coolant | Yes |
| Nose Diameter (Decimal Inch) | 1.7520 |
| Nose Diameter (mm) | 44.50 |
| Overall Length (mm) | 188.40 |
| Overall Length (Decimal Inch) | 7.4173 |
| Retention Knob Thread Size | M16 |
