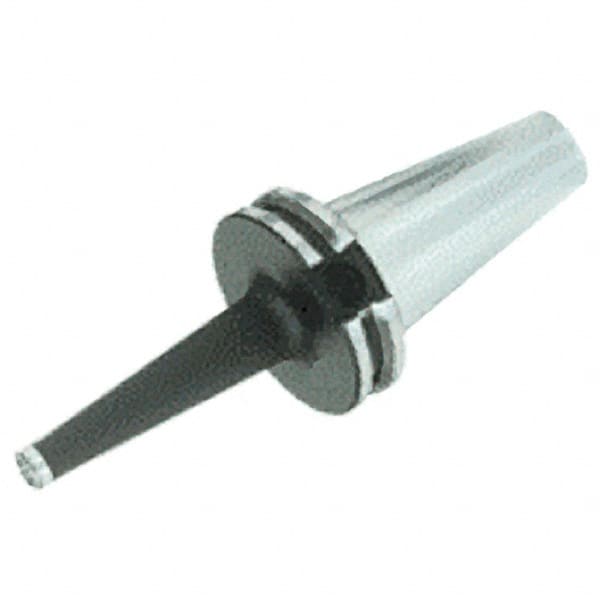

Iscar - CAT50 Taper Shank 10mm Hole End Mill Holder/Adapter - 18mm Nose Diam, 3" Projection, Through-Spindle & DIN Flange Coolant
Item #: 50065861
Brand: Iscar
Model #: 4505707
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Hole Diameter (mm) | 10.00 |
| Nose Diameter (mm) | 18.00 |
| Projection (Decimal Inch) | 3.0000 |
| Through Coolant | Yes |
| Clamping Depth (Decimal Inch) | 1.4050 |
| Balanced to (RPM) | 12000 |
| Coolant Type | Through-Spindle & DIN Flange |
| Retention Knob Thread Size | 1-8 |
