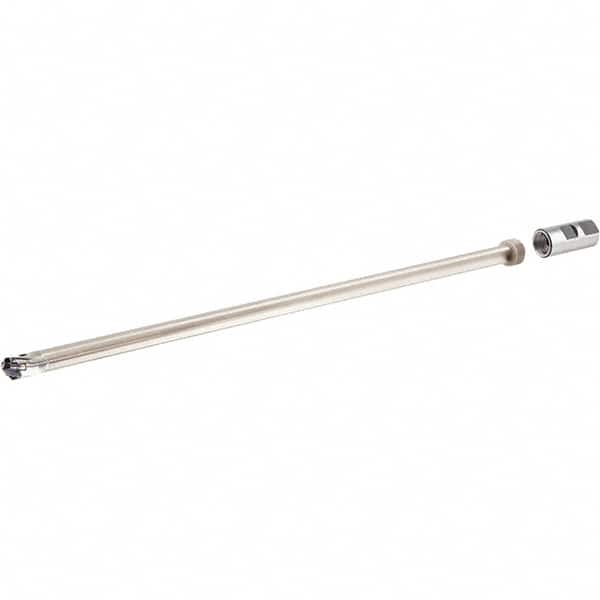

Iscar - 12.5 to 12.99mm Diam, 800mm Max Drill Depth, 855.5mm OAL, Replaceable Tip Drill - 33.6811" OAL
Item #: 50066372
Brand: Iscar
Model #: 3203583
Exact Tooling IR#: 04
Features and Benefits
Threaded shank shrink-fit holders are used with compatable threaded shank toolholders systems to extend the capabilities of the system.
| Product Specifications | |
|---|---|
| Minimum Drill Diameter (mm) | 12.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.4921 |
| Maximum Drill Diameter (mm) | 12.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.5114 |
| Maximum Drill Depth (Decimal Inch) | 31.4961 |
| Maximum Drill Depth (mm) | 800.00 |
| Through Coolant | Through Coolant |
| Shank Type | Threaded Shank |
| Body Length (mm) | 830.00 |
| Body Length (Decimal Inch) | 32.6772 |
| Overall Length (mm) | 855.50 |
| Overall Length (Decimal Inch) | 33.6811 |
| Shank Length (mm) | 25.50 |
| Shank Length (Decimal Inch) | 1.0039 |
