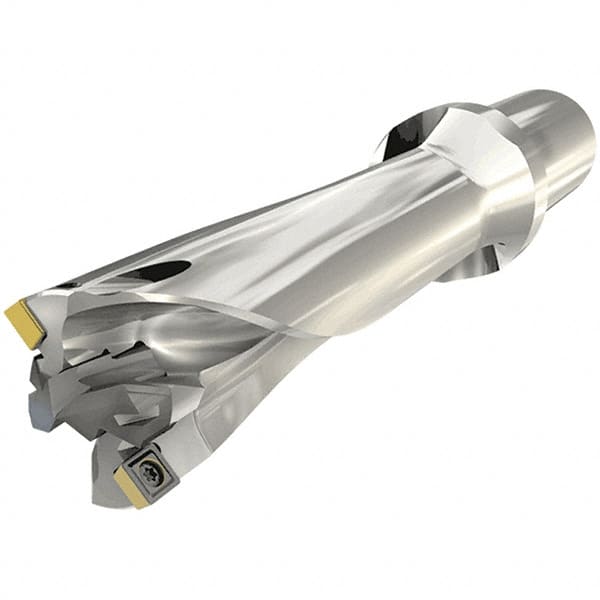

Iscar - 39mm Max Diam, 5xD, 195mm Max Drill Depth, 40mm Shank Diam, 305.8mm OAL, Replaceable Tip Drill - 12.0394" OAL, 5xD Drill Depth by Diam Ratio
Item #: 50066380
Brand: Iscar
Model #: 3202874
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Maximum Drill Diameter (mm) | 39.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.5354 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 7.6772 |
| Maximum Drill Depth (mm) | 195.00 |
| Shank Diameter (mm) | 40.00 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 237.80 |
| Body Length (Decimal Inch) | 9.3622 |
| Overall Length (mm) | 305.80 |
| Overall Length (Decimal Inch) | 12.0394 |
| Shank Length (mm) | 68.00 |
| Shank Length (Decimal Inch) | 2.6772 |
