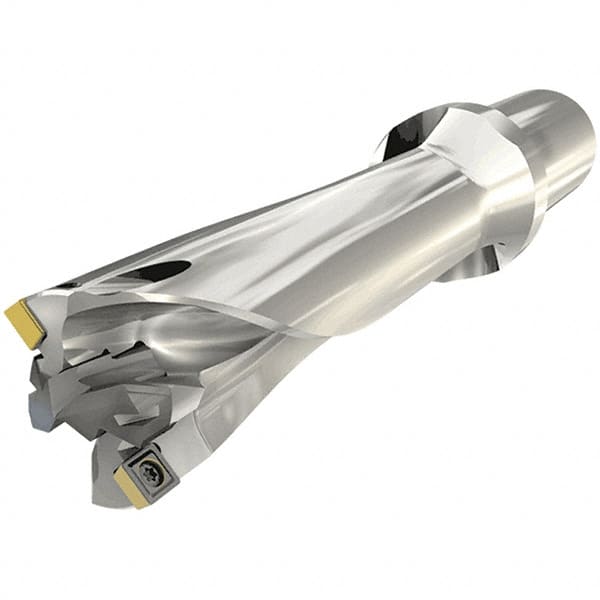

Iscar - 29.5mm Max Diam, 5xD, 148mm Max Drill Depth, 32mm Shank Diam, 240mm OAL, Replaceable Tip Drill - 9.4488" OAL, 5xD Drill Depth by Diam Ratio
Item #: 50066406
Brand: Iscar
Model #: 3260183
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Maximum Drill Diameter (mm) | 29.50 |
| Maximum Drill Diameter (Decimal Inch) | 1.1614 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 5.8268 |
| Maximum Drill Depth (mm) | 148.00 |
| Shank Diameter (mm) | 32.00 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 180.00 |
| Body Length (Decimal Inch) | 7.0866 |
| Overall Length (mm) | 240.00 |
| Overall Length (Decimal Inch) | 9.4488 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
