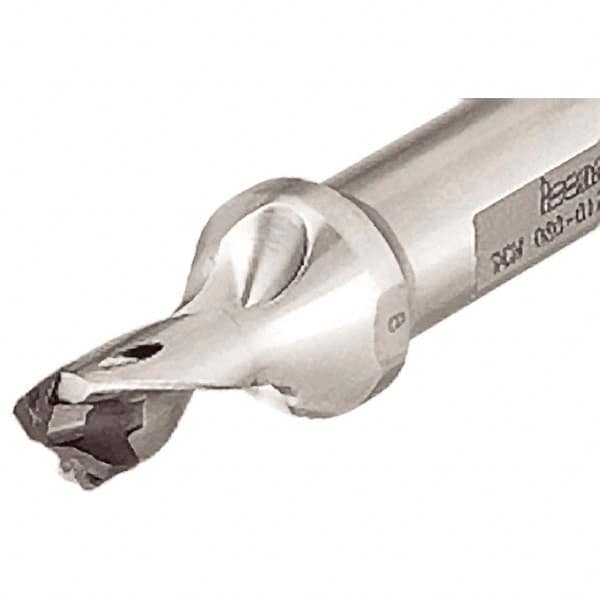

Iscar - 7.5 to 7.9mm Diam, 1.5xD, 11mm Max Drill Depth, 12mm Shank Diam, 70.9mm OAL, Replaceable Tip Drill - 2.7913" OAL, 1.5xD Drill Depth by Diam Ratio
Item #: 50066422
Brand: Iscar
Model #: 3203327
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Minimum Drill Diameter (mm) | 7.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.2953 |
| Maximum Drill Diameter (mm) | 7.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.3110 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.4331 |
| Maximum Drill Depth (mm) | 11.00 |
| Shank Diameter (mm) | 12.00 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 25.90 |
| Body Length (Decimal Inch) | 1.0197 |
| Overall Length (mm) | 70.90 |
| Overall Length (Decimal Inch) | 2.7913 |
| Shank Length (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.7717 |
