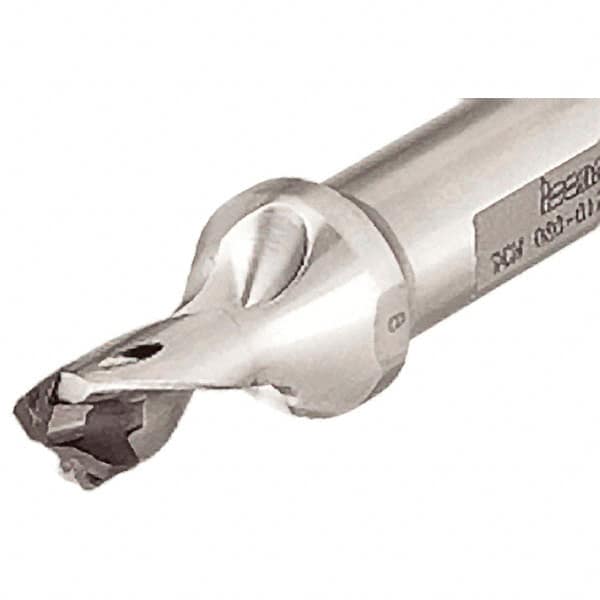

Iscar - 14.5 to 14.9mm Diam, 1.5xD, 22mm Max Drill Depth, 16mm Shank Diam, 89.9mm OAL, Replaceable Tip Drill - 3.5394" OAL, 1.5xD Drill Depth by Diam Ratio
Item #: 50066430
Brand: Iscar
Model #: 3203355
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Minimum Drill Diameter (mm) | 14.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.5709 |
| Maximum Drill Diameter (mm) | 14.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.5866 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.8661 |
| Maximum Drill Depth (mm) | 22.00 |
| Shank Diameter (mm) | 16.00 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 41.90 |
| Body Length (Decimal Inch) | 1.6496 |
| Overall Length (mm) | 89.90 |
| Overall Length (Decimal Inch) | 3.5394 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
