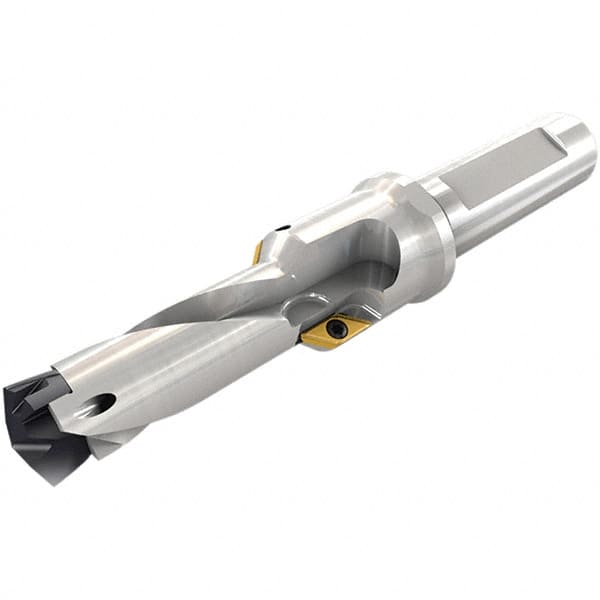

Iscar - 28 to 28.9mm Diam, 5xD, 140mm Max Drill Depth, 40mm Shank Diam, 252.2mm OAL, Replaceable Tip Drill - 9.9291" OAL, 5xD Drill Depth by Diam Ratio
Item #: 50066455
Brand: Iscar
Model #: 3260010
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Minimum Drill Diameter (mm) | 28.00 |
| Minimum Drill Diameter (Decimal Inch) | 1.1024 |
| Maximum Drill Diameter (mm) | 28.90 |
| Maximum Drill Diameter (Decimal Inch) | 1.1378 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 5.5118 |
| Maximum Drill Depth (mm) | 140.00 |
| Shank Diameter (mm) | 40.00 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 184.20 |
| Body Length (Decimal Inch) | 7.2520 |
| Overall Length (mm) | 252.20 |
| Overall Length (Decimal Inch) | 9.9291 |
| Shank Length (mm) | 68.00 |
| Shank Length (Decimal Inch) | 2.6772 |
