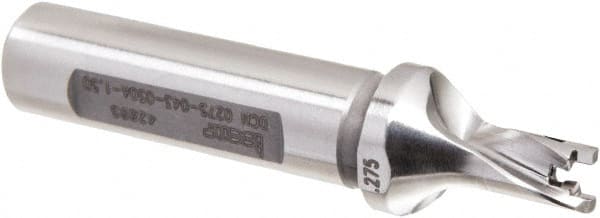

Iscar - 0.275 to 0.291" Diam, 1.5xD, 0.43" Max Drill Depth, 2.76" OAL, Replaceable Tip Drill - 2.76" OAL, 1.5xD Drill Depth by Diam Ratio
Item #: 50066471
Brand: Iscar
Model #: 3202932
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Minimum Drill Diameter (Decimal Inch) | 0.2750 |
| Maximum Drill Diameter (Decimal Inch) | 0.2910 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.4300 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 0.9900 |
| Overall Length (Decimal Inch) | 2.7600 |
| Shank Length (Decimal Inch) | 1.7700 |
