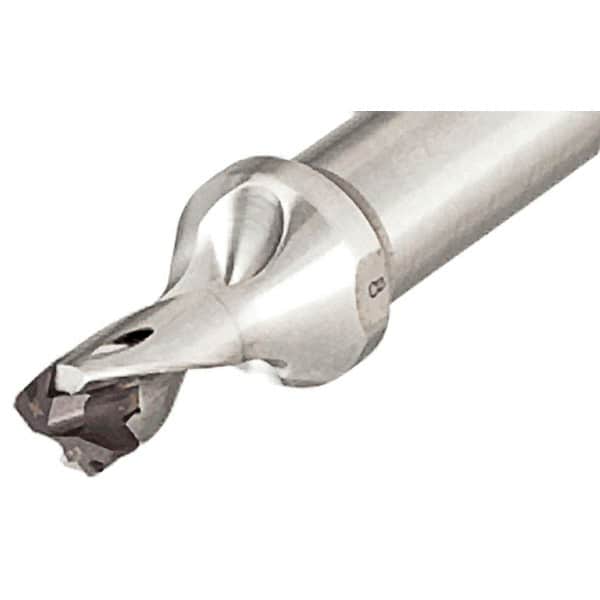

Iscar - 10.5 to 10.9mm Diam, 1.5xD, 16mm Max Drill Depth, 16mm Shank Diam, 80mm OAL, Replaceable Tip Drill - 3.1496" OAL, 1.5xD Drill Depth by Diam Ratio
Item #: 50066513
Brand: Iscar
Model #: 3203340
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Minimum Drill Diameter (mm) | 10.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.4134 |
| Maximum Drill Diameter (mm) | 10.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.4291 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.6299 |
| Maximum Drill Depth (mm) | 16.00 |
| Shank Diameter (mm) | 16.00 |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (mm) | 32.00 |
| Body Length (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
