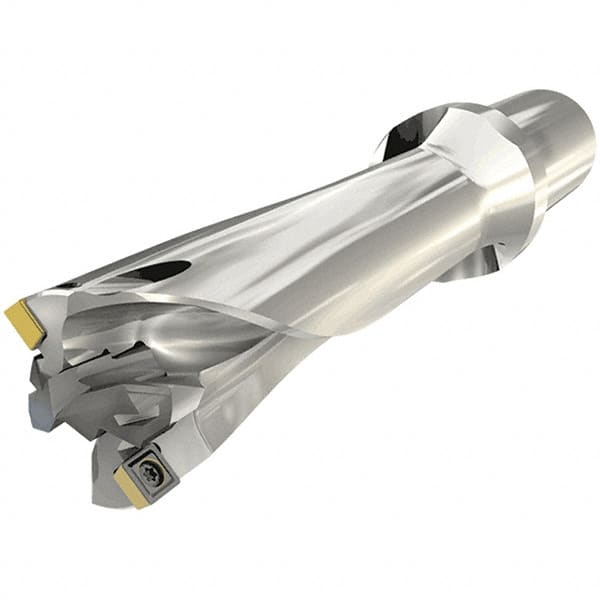

Iscar - 44mm Max Diam, 5xD, 220mm Max Drill Depth, 40mm Shank Diam, 327mm OAL, Replaceable Tip Drill - 12-7/8" OAL, 5xD Drill Depth by Diam Ratio
Item #: 50066612
Brand: Iscar
Model #: 3202879
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Maximum Drill Diameter (mm) | 44.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.7323 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 8.6614 |
| Maximum Drill Depth (mm) | 220.00 |
| Shank Diameter (mm) | 40.00 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 259.00 |
| Body Length (Decimal Inch) | 10.1969 |
| Overall Length (mm) | 327.00 |
| Overall Length (Decimal Inch) | 12.8740 |
| Shank Length (mm) | 68.00 |
| Shank Length (Decimal Inch) | 2.6772 |
