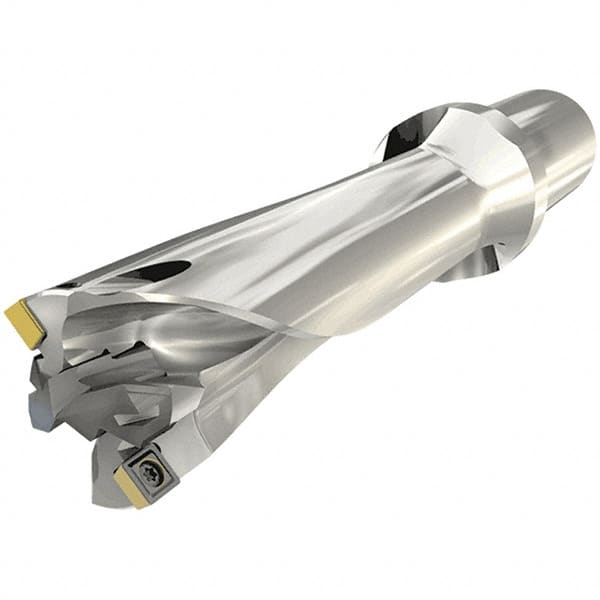

Iscar - 48mm Max Diam, 5xD, 240mm Max Drill Depth, 40mm Shank Diam, 347mm OAL, Replaceable Tip Drill - 13.6614" OAL, 5xD Drill Depth by Diam Ratio
Item #: 50066729
Brand: Iscar
Model #: 3202883
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Maximum Drill Diameter (mm) | 48.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.8898 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 9.4488 |
| Maximum Drill Depth (mm) | 240.00 |
| Shank Diameter (mm) | 40.00 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 279.00 |
| Body Length (Decimal Inch) | 10.9843 |
| Overall Length (mm) | 347.00 |
| Overall Length (Decimal Inch) | 13.6614 |
| Shank Length (mm) | 68.00 |
| Shank Length (Decimal Inch) | 2.6772 |
