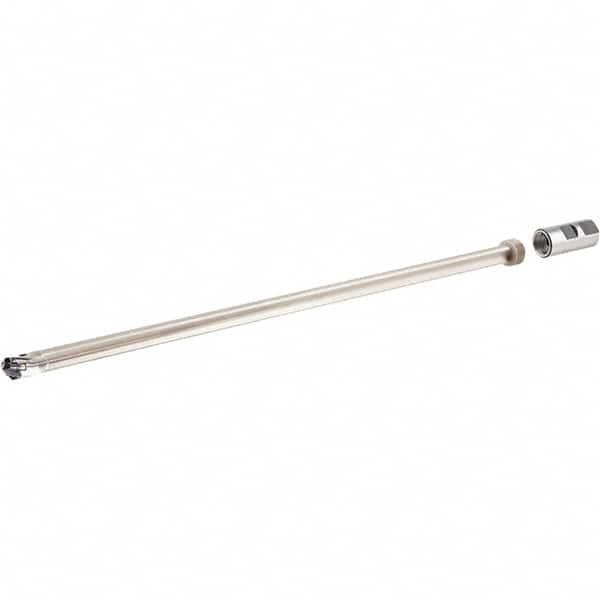

Iscar - 10.5 to 10.99mm Diam, 400mm Max Drill Depth, 455.5mm OAL, Replaceable Tip Drill - 17.9331" OAL
Item #: 50066778
Brand: Iscar
Model #: 3203573
Exact Tooling IR#: 04
Features and Benefits
Threaded shank shrink-fit holders are used with compatable threaded shank toolholders systems to extend the capabilities of the system.
| Product Specifications | |
|---|---|
| Minimum Drill Diameter (mm) | 10.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.4134 |
| Maximum Drill Diameter (mm) | 10.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.4327 |
| Maximum Drill Depth (Decimal Inch) | 15.7480 |
| Maximum Drill Depth (mm) | 400.00 |
| Through Coolant | Through Coolant |
| Shank Type | Threaded Shank |
| Body Length (mm) | 430.00 |
| Body Length (Decimal Inch) | 16.9291 |
| Overall Length (mm) | 455.50 |
| Overall Length (Decimal Inch) | 17.9331 |
| Shank Length (mm) | 25.50 |
| Shank Length (Decimal Inch) | 1.0039 |
