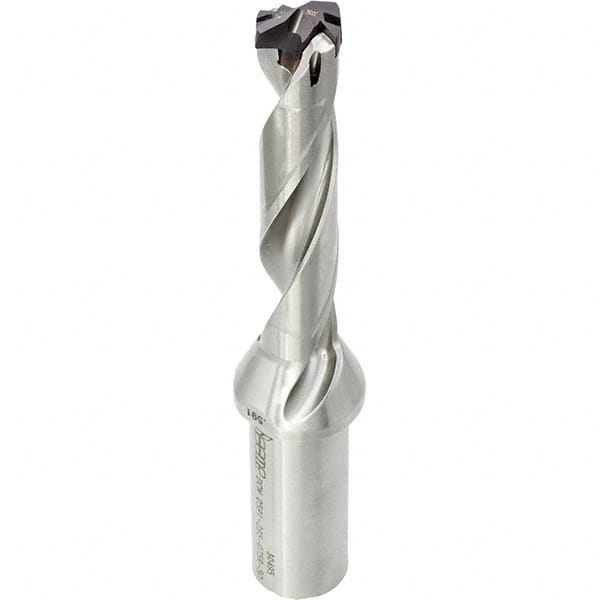

Iscar - 1.142 to 1.177" Diam, 8xD, 9.14" Max Drill Depth, 13.3" OAL, Replaceable Tip Drill - 13.3" OAL, 8xD Drill Depth by Diam Ratio
Item #: 50066794
Brand: Iscar
Model #: 3203143
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Minimum Drill Diameter (Decimal Inch) | 1.1420 |
| Maximum Drill Diameter (Decimal Inch) | 1.1770 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 9.1400 |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 10.9400 |
| Overall Length (Decimal Inch) | 13.3000 |
| Shank Length (Decimal Inch) | 2.3600 |
