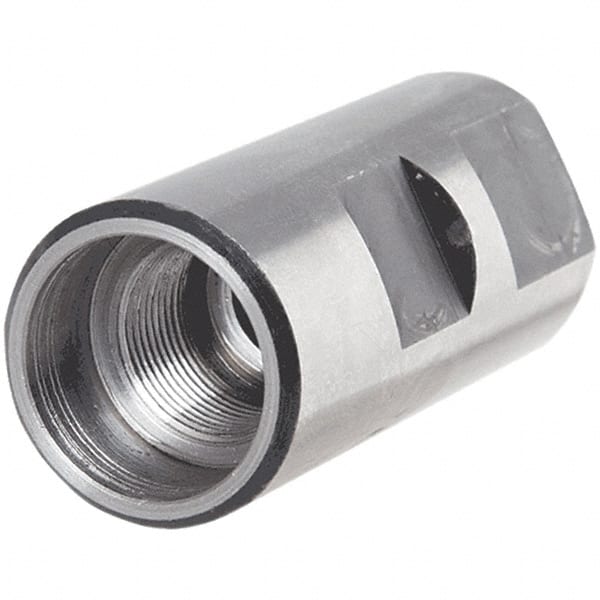

Iscar - 1-1/16 to 1.098" Diam, 5xD, 5.31" Max Drill Depth, 9.35" OAL, Replaceable Tip Drill - 9.35" OAL, 5xD Drill Depth by Diam Ratio
Item #: 50066802
Brand: Iscar
Model #: 3203521
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Minimum Drill Diameter (Decimal Inch) | 1.0630 |
| Maximum Drill Diameter (Decimal Inch) | 1.0980 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 5.3100 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 6.9900 |
| Overall Length (Decimal Inch) | 9.3500 |
| Shank Length (Decimal Inch) | 2.3600 |
