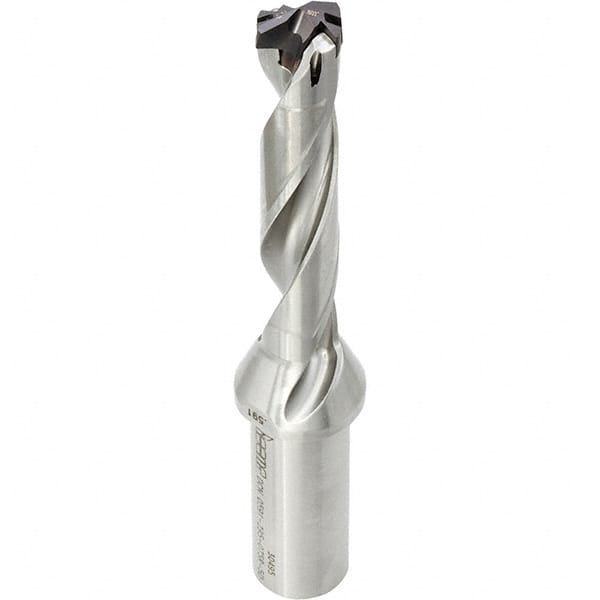

Iscar - 1.26 to 1.295" Diam, 5xD, 6.3" Max Drill Depth, 10.64" OAL, Replaceable Tip Drill - 10.64" OAL, 5xD Drill Depth by Diam Ratio
Item #: 50066828
Brand: Iscar
Model #: 3203541
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Minimum Drill Diameter (Decimal Inch) | 1.2600 |
| Maximum Drill Diameter (Decimal Inch) | 1.2950 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 6.3000 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 8.2800 |
| Overall Length (Decimal Inch) | 10.6400 |
| Shank Length (Decimal Inch) | 2.3600 |
