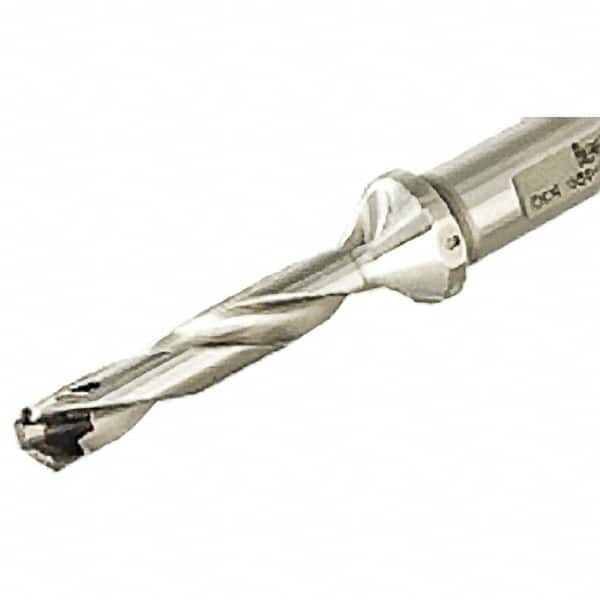

Iscar - 1.142 to 1.177" Diam, 3xD, 3.42" Max Drill Depth, 7.58" OAL, Replaceable Tip Drill - 7.58" OAL, 3xD Drill Depth by Diam Ratio
Item #: 50066869
Brand: Iscar
Model #: 3203528
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Minimum Drill Diameter (Decimal Inch) | 1.1420 |
| Maximum Drill Diameter (Decimal Inch) | 1.1770 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 3.4200 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 5.2200 |
| Overall Length (Decimal Inch) | 7.5800 |
| Shank Length (Decimal Inch) | 2.3600 |
