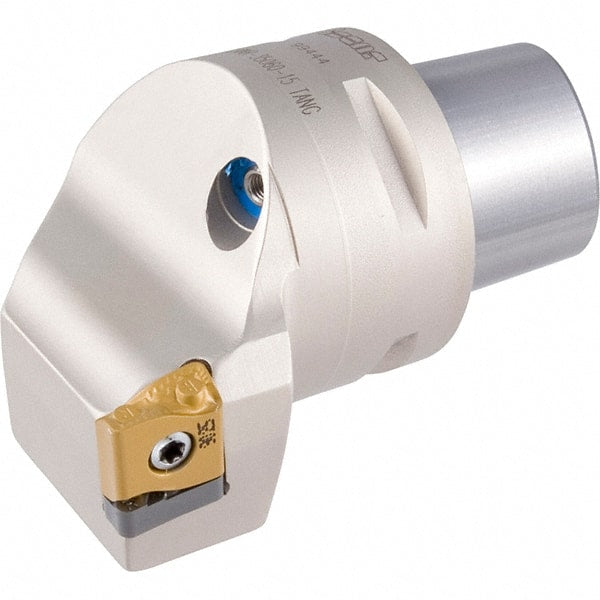

Iscar - Right Hand Cut, Size C6, LNMX-HM, LNMX-HT, LNMX-WG Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 45mm Ctr to Cutting Edge, 65mm Head Length, Through Coolant, Series CAMFIX & Heliturn
Item #: 50066901
Brand: Iscar
Model #: 3693753
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | CAMFIX; Heliturn |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 65.00 |
| Head Length/Projection (Decimal Inch) | 2.5591 |
| Insert Style | LNMX-HM; LNMX-HT; LNMX-WG |
| Internal or External | External |
| Center to Cutting Edge (mm) | 45.00 |
| Center to Cutting Edge (Decimal Inch) | 1.7717 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Neck Diameter (mm) | 63.00 |
| Neck Diameter (Decimal Inch) | 2.4803 |
| Complete Insert Compatibility | LNMX 110408L-HM; LNMX 110408L-HT; LNMX 110408R-HM; LNMX 110408R-HT; LNMX 110412L-HM; LNMX 110412L-HT; LNMX 110412R-HM; LNMX 110412R-HT; LNMX 150608L-HM; LNMX 150608L-HT; LNMX 150608L-WG; LNMX 150608R-HM; LNMX 150608R-HT; LNMX 150608R-WG; LNMX 150612L-HM; |
