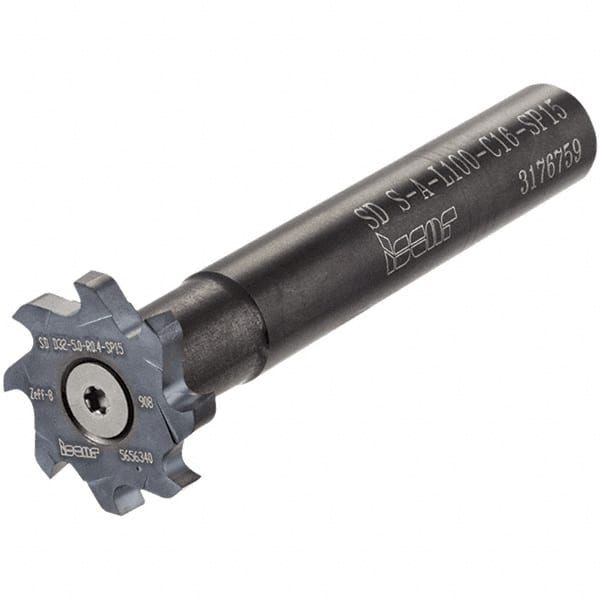

Iscar - T-Slot 5/8" Stepped Shank Milling Tip Insert Holder & Shank - 7" Projection, 0.591" Neck Diam, M5x0.50 Neck Thread, 7.192" OAL, Carbide SD S-A Tool Holder
Item #: 50067057
Brand: Iscar
Model #: 3110824
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | T-Slot |
| Shank Type | Stepped Shank |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Projection (Decimal Inch) | 7.0000 |
| Neck Diameter (Decimal Inch) | 0.5910 |
| Neck Thread Size | M5x0.50 |
| Toolholder Material | Carbide |
| Overall Length (Decimal Inch) | 7.1920 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 0.6300 |
| Effective Length (Decimal Inch) | 7.0000 |
| Milling Tip Style | SD-SP |
| Shank Material | Carbide |
| Shank Shape | Straight |
| Toolholder Style | SD S-A |
