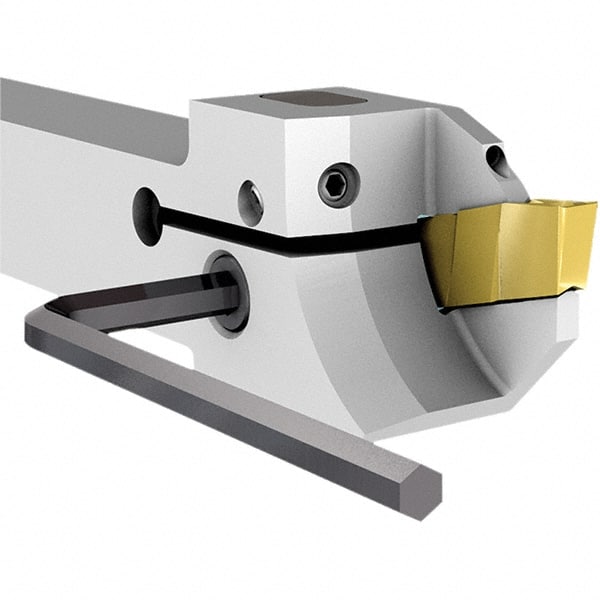

Iscar - GHS, External, Left Hand, 2.8 to 4mm Groove Width, Indexable Grooving Tool Holder - GI.., TIP Insert Compatibility, 12mm Shank Height, 12mm Shank Width, 100mm OAL, Through Coolant
Item #: 50067842
Brand: Iscar
Model #: 2801928
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Minimum Groove Width (Decimal Inch) | 0.1102 |
| Minimum Groove Width (mm) | 2.80 |
| Maximum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Toolholder Style | GHS |
| Insert Compatibility | GI..; TIP |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Width/Diameter (Decimal Inch) | 0.4724 |
| Series | Cut Grip; JetHPLine |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Self Clamp |
| Maximum Hole Depth (Decimal Inch) | 0.9843 |
| Maximum Workpiece Diameter (mm) | 25.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 0.9843 |
| Back of Bar to Cutting Edge (Decimal Inch) | 10.8000 |
| Head Length (mm) | 25.00 |
| Head Length (Decimal Inch) | 0.9843 |
| Full Radius Insert | Yes |
| Shank Length (mm) | 75.00 |
| Shank Length (Decimal Inch) | 2.9528 |
| Complete Insert Compatibility | GIG 1.04-0.00; GIG 1.20-0.00; GIG 1.25-0.10; GIG 1.40-0.00; GIG 1.45-0.10; GIG 1.47-0.00; GIG 1.50-0.10; GIG 1.57-0.15; GIG 1.70-0.10; GIG 1.78-0.18; GIG 1.85-0.15; GIG 1.86-0.15; GIG 1.96-0.15; GIG 2.00-0.20; GIG 2.22-0.15; GIG 2.30-0.20; GIM 2.2J; GIM 2 |
