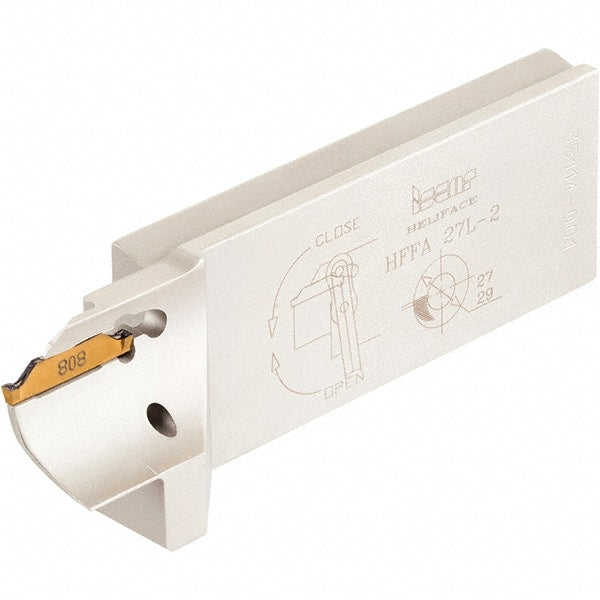

Iscar - 2mm Groove Width, 14mm Max Depth of Cut, Right Hand Cut, HFFA Indexable Grooving Blade - HFPN Insert Style, Series Heliface
Item #: 50067941
Brand: Iscar
Model #: 2500752
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Minimum Groove Width (mm) | 2.00 |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 14.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5512 |
| Blade Style | HFFA |
| Series | Heliface |
| Minimum Workpiece Diameter (mm) | 80.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 3.1496 |
| Maximum Workpiece Diameter (mm) | 105.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 4.1339 |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (mm) | 16.10 |
| Blade Width (Decimal Inch) | 0.6339 |
| Overall Length (mm) | 102.00 |
| Overall Length (Decimal Inch) | 4.0158 |
| Manufacturers Catalog Number | HFFA 80R-2 |
| Cutting Height (Decimal Inch) | 0.9764 |
| Insert Style | HFPN |
| Complete Insert Compatibility | HFPN 2002 |
