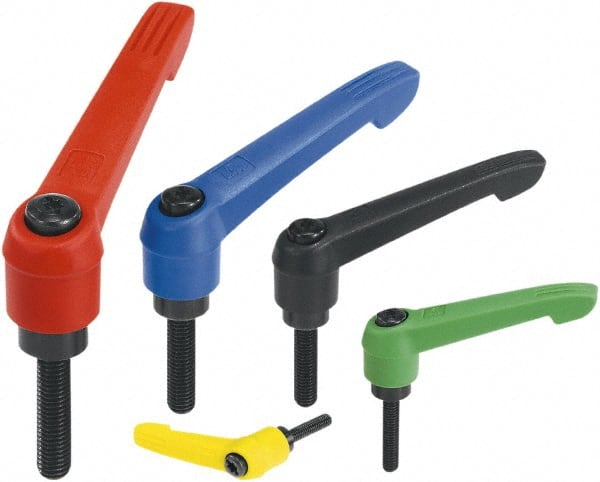

KIPP - 1/2-13, Fiberglass Reinforced Plastic Threaded Stud Adjustable Clamping Handle - 109mm OAL, 66mm High
Item #: 50078435
Brand: KIPP
Model #: K0269.4A52X60
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | 1/2-13 |
| Overall Length (mm) | 109.00 |
| Handle Material | Fiberglass-Reinforced Plastic |
| Components Finish/Coating | Black Oxide |
| Components Material | Steel; Zinc (Toothed Wheel) |
| Handle Type | Adjustable Handle |
| Handle Radius Length (Decimal Inch) | 3.7402 |
| Handle Arm Style | Modern Design / Teardrop End |
| Body Height (Decimal Inch) | 1.6929 |
| Body Diameter (mm) | 27.50 |
| Base Height (Decimal Inch) | 0.3937 |
| Base Diameter (Decimal Inch) | 0.7480 |
| Handle Arm Angle | 20 Angle |
| Body Height (mm) | 43.00 |
| Body Diameter (Decimal Inch) | 1.0827 |
| Base Height (mm) | 10.00 |
| Base Diameter (mm) | 19.00 |
| Thread Length (Decimal Inch) | 2.3622 |
| Overall Height (mm) | 66.00 |
| Overall Height (Decimal Inch) | 2.5984 |
| Thread Length (mm) | 60.00 |
| Handle Radius Length (mm) | 95.00 |
| Handle Color | Orange |
