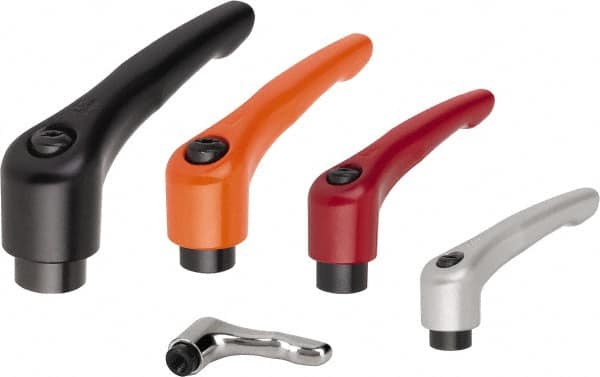

KIPP - 1/2-13, Zinc Threaded Hole Adjustable Clamping Handle - 109mm OAL, 67.5mm High
Item #: 50083963
Brand: KIPP
Model #: K0122.4A56
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Hole |
| Thread Size | 1/2-13 |
| Overall Length (mm) | 109.00 |
| Handle Material | Zinc |
| Components Finish/Coating | Black Oxide |
| Handle Finish/Coating | Chrome Plated |
| Components Material | Steel |
| Handle Type | Adjustable Handle |
| Handle Radius Length (Decimal Inch) | 3.7402 |
| Handle Arm Style | Modern Design / Teardrop End |
| Body Height (Decimal Inch) | 1.6929 |
| Body Diameter (mm) | 27.50 |
| Base Height (Decimal Inch) | 0.3937 |
| Base Diameter (Decimal Inch) | 0.7480 |
| Handle Arm Angle | Angled |
| Body Height (mm) | 43.00 |
| Body Diameter (Decimal Inch) | 1.0827 |
| Base Height (mm) | 10.00 |
| Base Diameter (mm) | 19.00 |
| Thread Length (Decimal Inch) | 0.6693 |
| Overall Height (mm) | 67.50 |
| Overall Height (Decimal Inch) | 2.6575 |
| Thread Length (mm) | 17.00 |
| Handle Radius Length (mm) | 95.00 |
| Handle Color | Metallic |
