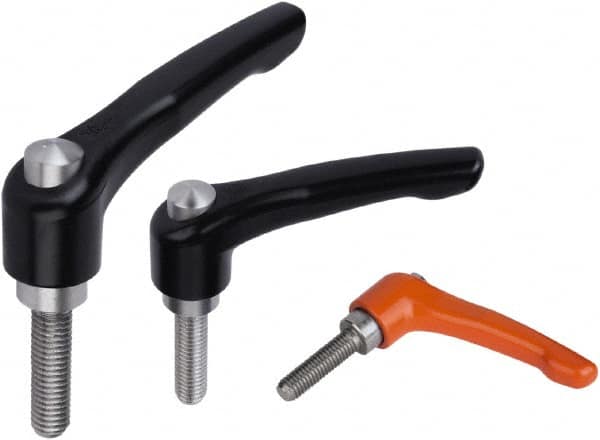

KIPP - M10, Zinc Threaded Stud Adjustable Clamping Handle - 91mm OAL, 58.5mm High
Item #: 50092840
Brand: KIPP
Model #: K0123.93101X20
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | M10 |
| Overall Length (mm) | 91.00 |
| Handle Material | Zinc |
| Components Finish/Coating | Natural; Natural (Cap) |
| Handle Finish/Coating | Powder Coated; Satin |
| Components Material | Stainless Steel; Stainless Steel (Cap) |
| Handle Type | Adjustable Handle |
| Handle Radius Length (Decimal Inch) | 3.1496 |
| Handle Arm Style | Modern Design / Teardrop End |
| Body Height (Decimal Inch) | 1.6339 |
| Body Diameter (mm) | 22.00 |
| Base Height (Decimal Inch) | 0.3937 |
| Base Diameter (Decimal Inch) | 0.6299 |
| Handle Arm Angle | Angled |
| Body Height (mm) | 41.50 |
| Body Diameter (Decimal Inch) | 0.8661 |
| Base Height (mm) | 10.00 |
| Base Diameter (mm) | 16.00 |
| Thread Length (Decimal Inch) | 0.7874 |
| Overall Height (mm) | 58.50 |
| Overall Height (Decimal Inch) | 2.3032 |
| Thread Length (mm) | 20.00 |
| Handle Radius Length (mm) | 80.00 |
| Handle Color | Black |
