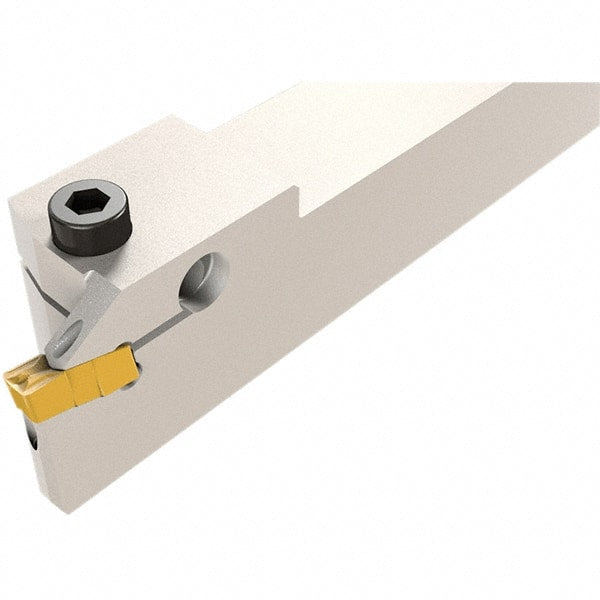

Iscar - GHD, External, Right Hand, 0.36" Max Depth of Cut, 0.11 to 0.157" Groove Width, Indexable Grooving Tool Holder - GI.., GPV, TIP Insert Compatibility, 3/4" Shank Height, 3/4" Shank Width, 4-1/2" OAL, Through Coolant
Item #: 50098870
Brand: Iscar
Model #: 2801940
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3600 |
| Minimum Groove Width (Decimal Inch) | 0.1100 |
| Maximum Groove Width (Decimal Inch) | 0.1570 |
| Overall Length (Decimal Inch) | 4.5000 |
| Toolholder Style | GHD |
| Insert Compatibility | GI..; GPV; TIP |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Series | Cut Grip; JetHPLine |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Self Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7000 |
| Head Length (Decimal Inch) | 1.1400 |
| Full Radius Insert | Yes |
| Shank Length (Decimal Inch) | 3.3600 |
| Complete Insert Compatibility | GIA 3.00K-0.40; GIA 4.00K-0.40; GIA 4.00K-0.80; GIA 5.00K-0.80; GIA 6.00K-0.80; GIF 3.48-0.20; GIF 3.56-0.20; GIF 3.74-0.20; GIF 3.98-0.20; GIF 4.00E-0.40; GIF 4.00E-0.60; GIF 4.00E-0.80; GIF 4.00E-2.00; GIF 4.23-0.10; GIF 4.45-0.15; GIF 4.78-0.55; GIF 4. |
