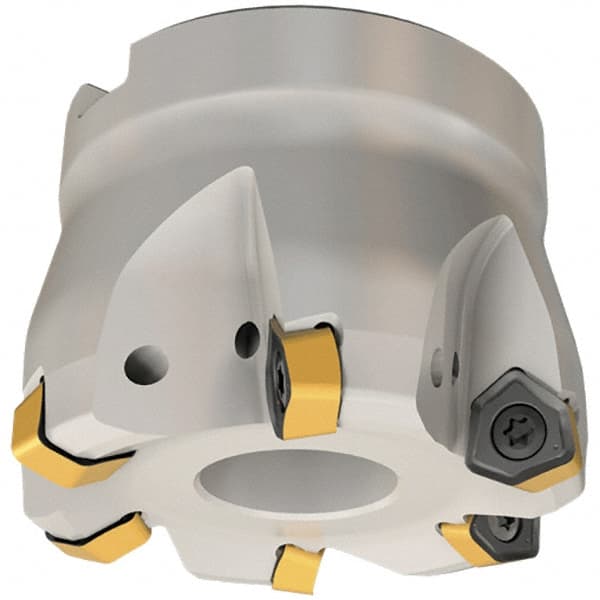

Iscar - 6 Inserts, 2-1/2" Cutter Diam, 0.059" Max Depth of Cut, Indexable High-Feed Face Mill - 1" Arbor Hole Diam, 3/8" Keyway Width, 1-3/4" High, FF FWX Toolholder, H600 WXCU 0.. Inserts, Series Helido
Item #: 50099266
Brand: Iscar
Model #: 3106845
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (Decimal Inch) | 1.7500 |
| Series | Helido |
| Cutter Style | FF FWX |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | H600 WXCU 0.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 6 |
| Through Coolant | Yes |
| Complete Insert Compatibility | H600 WXCU 040310HP; H600 WXCU 040310T; H600 WXCU 05T312HP; H600 WXCU 05T312T; H600 WXCU 070515HP; H600 WXCU 070515T; H600 WXCU 080612HP; H600 WXCU 080612T; H600 WXCU 080616RM |
| Keyway Width (Decimal Inch) | 0.3750 |
| Manufacturers Catalog Number | FF FWX D2.50-06-1.00-07 |
