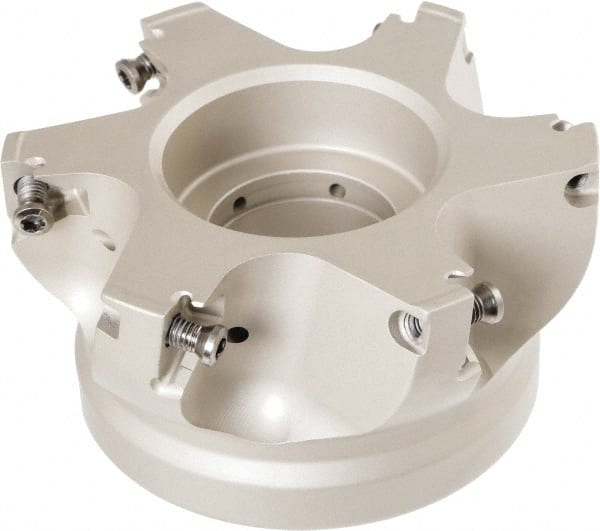

Iscar - 6 Inserts, 100mm Cut Diam, 31.75mm Arbor Diam, 13mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 50mm High, HM390 TD.T 1505.. Insert Compatibility, Through Coolant, Series HeliIQMill
Item #: 50099340
Brand: Iscar
Model #: 3106777
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 31.75 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | HM390 TD.T 1505.. |
| Series | HeliIQMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5118 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | HM390 FTD |
| Number of Flutes | 6 |
| Hub Diameter (mm) | 80.00 |
| Hub Diameter (Decimal Inch) | 3.1496 |
| Keyway Width (mm) | 14.40 |
| Keyway Width (Decimal Inch) | 0.5669 |
| Keyway Depth (Decimal Inch) | 0.3150 |
| Keyway Depth (mm) | 8.00 |
| Counterbore Diameter (Decimal Inch) | 1.8110 |
| Complete Insert Compatibility | HM390 TDCT 1505PDR; HM390 TDKT 150516-PDR; HM390 TDKT 150524-PDR; HM390 TDKT 150532-PDR; HM390 TDKT 150540-PDR; HM390 TDKT 1505PDR; HM390 TDKT 1505PDR-FW; HM390 TDKT 1505PDR-GW |
