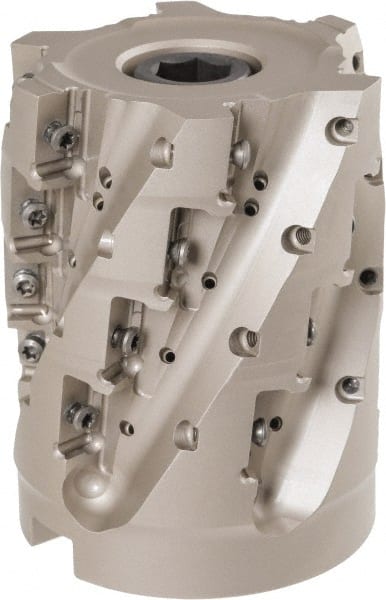

Iscar - 24 Inserts, 80mm Cut Diam, 32mm Arbor Diam, 71mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 100mm High, P290 AC.T 1806.. Insert Compatibility, Through Coolant, Series MillShred
Item #: 50099381
Brand: Iscar
Model #: 3110831
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Overall Height (mm) | 100.00 |
| Overall Height (Decimal Inch) | 3.9370 |
| Insert Compatibility | P290 AC.T 1806.. |
| Series | MillShred |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 71.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.7953 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 24 |
| Insert Holding Method | Screw |
| Cutter Style | P290 SM |
| Number of Flutes | 6 |
| Hub Diameter (mm) | 74.00 |
| Hub Diameter (Decimal Inch) | 2.9134 |
| Keyway Width (mm) | 14.40 |
| Keyway Width (Decimal Inch) | 0.5669 |
| Counterbore Diameter (Decimal Inch) | 1.8110 |
| Complete Insert Compatibility | P290 ACCT 1806PDR-HL; P290 ACCT 1806PDR-HL-P; P290 ACCT 1806PDR-TL; P290 ACKT 1806PDR-FW; P290 ACKT 1806PDR-FWE; P290 ACKT 1806PDR-FWE-P; P290 ACKT 1806PDR-FWR |
