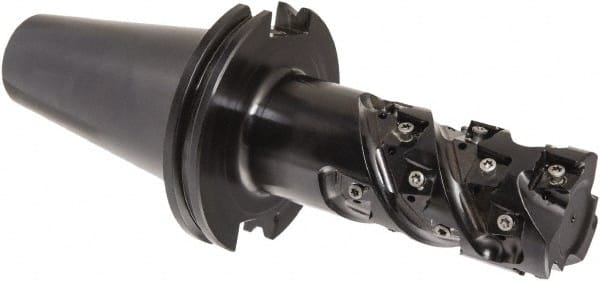

Iscar - 2" Cut Diam, 3.2" Max Depth of Cut, 5.7" OAL, Indexable Square Shoulder End Mill - Multiple Insert Styles, CAT 50 Taper Shank, 90° Lead Angle, Through Coolant, Series Helitang
Item #: 50099456
Brand: Iscar
Model #: 3106886
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Cutting Diameter (Inch) | 2 |
| Shank Type | Taper Shank |
| Shank Taper Size | CAT 50 |
| Overall Length/Projection (Decimal Inch) | 5.7000 |
| Lead Angle | 90 |
| Series | Helitang |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 3.2000 |
| Number of Cutter Inserts | 21 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | T490LNK-CAT50 |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 5.7000 |
| Insert Compatibility | T490 LNAR 1306PN-R; T490 LNAR 1306PN-R-P; T490 LNHT 130612PNTR; T490 LNHT 130616PNTL; T490 LNHT 130616PNTR; T490 LNHT 130624PNTL; T490 LNHT 130624PNTR; T490 LNHT 130631PNTL; T490 LNHT 130631PNTR; T490 LNHT 130640PNTR; T490 LNHT 130650PNTR; T490 LNHT 13066 |
