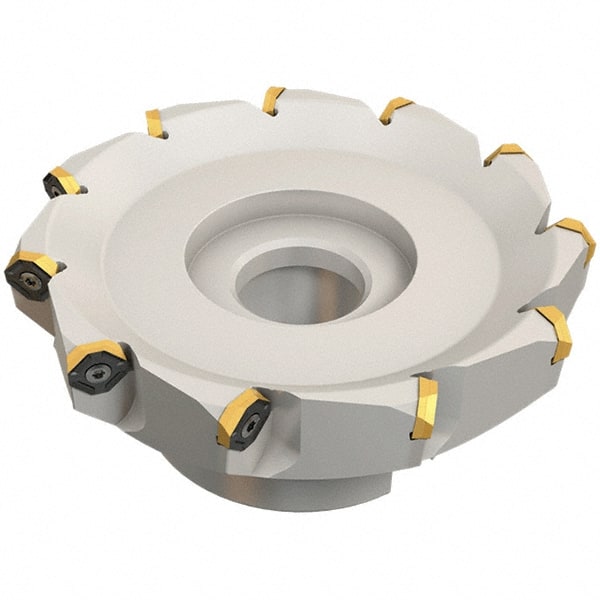

Iscar - 109.4mm Cut Diam, 31.75mm Arbor Hole, 4.6mm Max Depth of Cut, 50° Indexable Chamfer & Angle Face Mill - 7 Inserts, IQ845 SYHU 0704.. Insert, Right Hand Cut, 7 Flutes, Through Coolant, Series DoveIQMill
Item #: 50099605
Brand: Iscar
Model #: 3106857
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 109.40 |
| Cutting Diameter (Decimal Inch) | 4.3071 |
| Arbor Hole Diameter (mm) | 31.75 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 50 |
| Overall Height (Decimal Inch) | 2.1654 |
| Overall Height (mm) | 55.00 |
| Insert Compatibility | IQ845 SYHU 0704.. |
| Series | DoveIQMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 4.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.1811 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | IQ845 FSY |
| Number of Flutes | 7 |
| Hub Diameter (Decimal Inch) | 2.7559 |
| Hub Diameter (mm) | 70.00 |
| Keyway Width (mm) | 14.40 |
| Keyway Width (Decimal Inch) | 0.5669 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 0.3701 |
| Counterbore Diameter (Decimal Inch) | 1.8110 |
| Complete Insert Compatibility | IQ845 SYHU 070400ADN; IQ845 SYHU 070400ADTN; IQ845 SYHU 070400N-MM; IQ845 SYHU 0704ADN; IQ845 SYHU 0704ADN-MM; IQ845 SYHU 0704ADN-P; IQ845 SYHU 0704ADTN |
