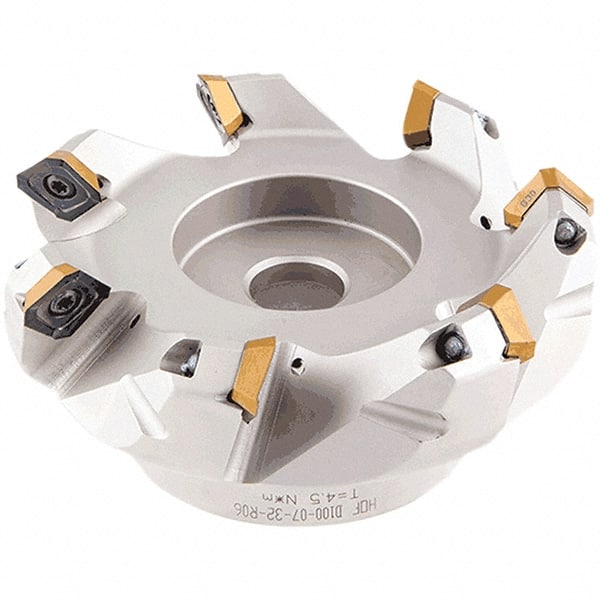

Iscar - 134.4, 135.7, 137.1mm Cut Diam, 40mm Arbor Hole, 5.5mm Max Depth of Cut, 42° Indexable Chamfer & Angle Face Mill - 8 Inserts, OE.. 060405\xB6OEMW 060405-AETN\xB6REMT 1505-LM-76 Insert, Right Hand Cut, 8 Flutes, Through Coolant, Series Heliocto
Item #: 50099613
Brand: Iscar
Model #: 3106592
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 134.40; 135.70; 137.10 |
| Cutting Diameter (Decimal Inch) | 5.2913; 5.3425; 5.3976 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 42 |
| Overall Height (Decimal Inch) | 2.4803; 2.5000; 2.5276 |
| Overall Height (mm) | 63.00; 63.50; 64.20 |
| Insert Compatibility | OE.. 060405; OEMW 060405-AETN; REMT 1505-LM-76 |
| Series | Heliocto |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | HOF |
| Number of Flutes | 8 |
| Hub Diameter (Decimal Inch) | 3.2284 |
| Hub Diameter (mm) | 82.00 |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 0.5787 |
| Counterbore Diameter (Decimal Inch) | 2.2047 |
| Complete Insert Compatibility | OECR 060405AER; OECR 060405AER-P; OEKT 060405AER; OEMT 060405AER-76; OEMW 060405-AETN; REMT 1505-LM-76; SEMT 140405ATR |
