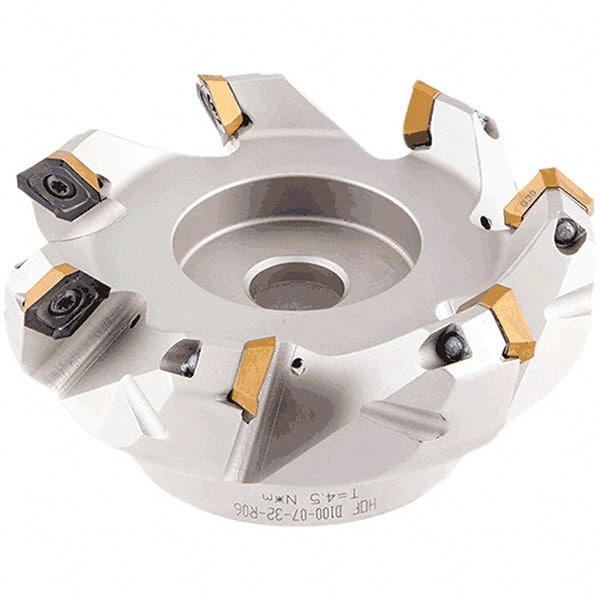

Iscar - 89.4, 90.7, 92.1mm Cut Diam, 27mm Arbor Hole, 5.5mm Max Depth of Cut, 42° Indexable Chamfer & Angle Face Mill - 6 Inserts, OE.. 060405\xB6OEMW 060405-AETN\xB6REMT 1505-LM-76 Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series Heliocto
Item #: 50099647
Brand: Iscar
Model #: 3106590
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 89.40; 90.70; 92.10 |
| Cutting Diameter (Decimal Inch) | 3.5197; 3.5709; 3.6260 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Lead Angle | 42 |
| Overall Height (Decimal Inch) | 1.9685; 1.9882; 2.0158 |
| Overall Height (mm) | 50.00; 50.50; 51.20 |
| Insert Compatibility | OE.. 060405; OEMW 060405-AETN; REMT 1505-LM-76 |
| Series | Heliocto |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | HOF |
| Number of Flutes | 6 |
| Hub Diameter (Decimal Inch) | 2.3622 |
| Hub Diameter (mm) | 60.00 |
| Keyway Width (mm) | 12.40 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 0.5787 |
| Counterbore Diameter (Decimal Inch) | 1.4961 |
| Complete Insert Compatibility | OECR 060405AER; OECR 060405AER-P; OEKT 060405AER; OEMT 060405AER-76; OEMW 060405-AETN; REMT 1505-LM-76; SEMT 140405ATR |
