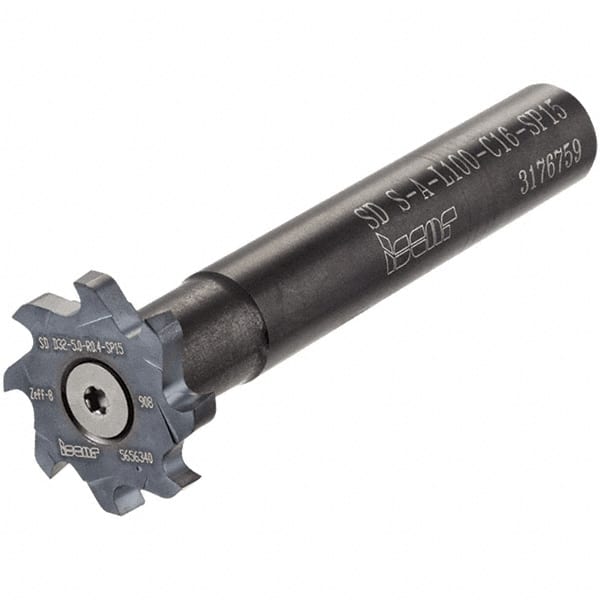

Iscar - T-Slot 16mm Stepped Shank Milling Tip Insert Holder & Shank - 18.2mm Projection, 0.596" Neck Diam, M5x0.50 Neck Thread, 130mm OAL, Carbide SD S-A Tool Holder
Item #: 50099696
Brand: Iscar
Model #: 3110820
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | T-Slot |
| Shank Type | Stepped Shank |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Projection (mm) | 18.20 |
| Projection (Decimal Inch) | 0.7165 |
| Neck Diameter (Decimal Inch) | 0.5906 |
| Neck Thread Size | M5x0.50 |
| Toolholder Material | Carbide |
| Overall Length (mm) | 130.00 |
| Overall Length (Decimal Inch) | 5.1181 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 0.6299 |
| Effective Length (mm) | 18.20 |
| Effective Length (Decimal Inch) | 0.7165 |
| Milling Tip Style | SD-SP |
| Shank Material | Carbide |
| Shank Shape | Straight |
| Toolholder Style | SD S-A |
