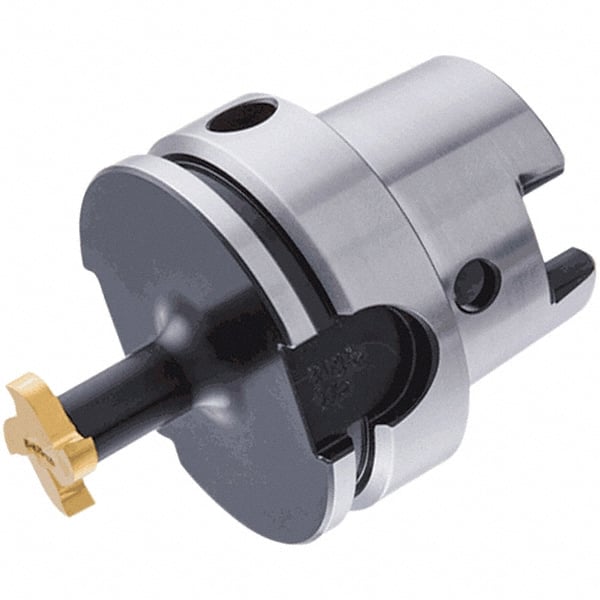

Iscar - Multimaster HSK63A Taper Shank Milling Tip Insert Holder & Shank - 55mm Projection, 0.725" Neck Diam, T12 Neck Thread, MM S-A Tool Holder
Item #: 50099712
Brand: Iscar
Model #: 3106920
Exact Tooling IR#: 04
Features and Benefits
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | Taper Shank |
| Shank Taper Size | HSK63A |
| Projection (mm) | 55.00 |
| Projection (Decimal Inch) | 2.1654 |
| Neck Diameter (Decimal Inch) | 0.7205 |
| Neck Thread Size | T12 |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Effective Length (mm) | 55.00 |
| Effective Length (Decimal Inch) | 2.1654 |
| Milling Tip Style | BCM-MM; FF EWX-MM; HCE-MM; HCM-MM; HM90 E90A-MM-10; HP E90AN-MM-07; MM EA; MM EA-CF; MM EB; MM EBA; MM EC-10; MM EC-4; MM EC-8; MM EC-CF; MM EC-D; MM ECF; MM EC-H-5; MM ECS; MM ECU; MM EFF; MM EFS; MM EFS-CF; MM ERA; MM ERS; MM FF; MM HBR; MM HCD; MM HR; |
| Shank Shape | Taper |
| Toolholder Style | MM S-A |
