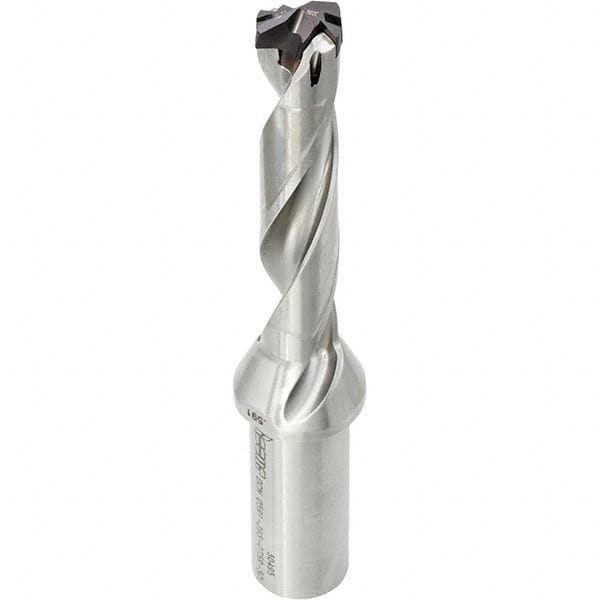

Iscar - 1.181" to 1.216" Diam, 5xD, 5.9" Max Depth, 1-1/2" Shank Diam, 10.45" OAL, Replaceable-Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 50100007 Toolholder, Series SumoCham
Item #: 50100007
Brand: Iscar
Model #: 3201749
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 1.1810 |
| Maximum Drill Diameter (Decimal Inch) | 1.2160 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 5.9000 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Style | FCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN A |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 7.7700 |
| Overall Length (Decimal Inch) | 10.4500 |
| Shank Length (Decimal Inch) | 2.6800 |
