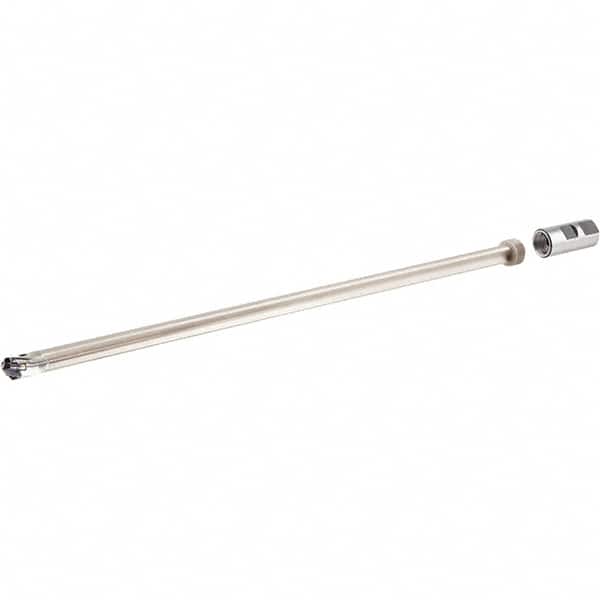

Iscar - 63/64" to 25.99mm Diam, 31-1/2" Max Depth, 855.5mm OAL, Replaceable-Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICP, iCP-2M Insert, 50100023 Toolholder, Series SumoGun
Item #: 50100023
Brand: Iscar
Model #: 3203509
Exact Tooling IR#: 04
Features and Benefits
Threaded shank shrink-fit holders are used with compatable threaded shank toolholders systems to extend the capabilities of the system.
| Product Specifications | |
|---|---|
| Series | SumoGun |
| Minimum Drill Diameter (mm) | 25.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.9843 |
| Maximum Drill Diameter (mm) | 25.99 |
| Maximum Drill Diameter (Decimal Inch) | 1.0232 |
| Maximum Drill Depth (Decimal Inch) | 31.4961 |
| Maximum Drill Depth (mm) | 800.00 |
| Insert Style | FCP; HCP-IQ; ICK; ICK-2M; ICP; iCP-2M |
| Toolholder Style | MNCNT |
| Through Coolant | Through Coolant |
| Shank Type | Threaded Shank |
| Body Length (mm) | 830.00 |
| Body Length (Decimal Inch) | 32.6772 |
| Overall Length (mm) | 855.50 |
| Overall Length (Decimal Inch) | 33.6811 |
| Shank Length (mm) | 25.50 |
| Shank Length (Decimal Inch) | 1.0039 |
