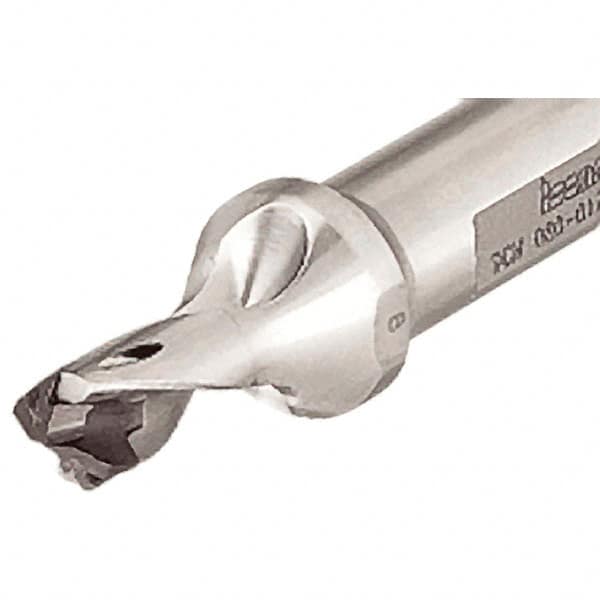

Iscar - 17/32" to 13.9mm Diam, 1.5xD, 20mm Max Depth, 16mm Shank Diam, 85.9mm OAL, Replaceable-Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 50100163 Toolholder, Series SumoCham
Item #: 50100163
Brand: Iscar
Model #: 3203351
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 13.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.5315 |
| Maximum Drill Diameter (mm) | 13.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.5472 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.7874 |
| Maximum Drill Depth (mm) | 20.00 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Style | FCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN A |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 37.90 |
| Body Length (Decimal Inch) | 1.4921 |
| Overall Length (mm) | 85.90 |
| Overall Length (Decimal Inch) | 3.3819 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
