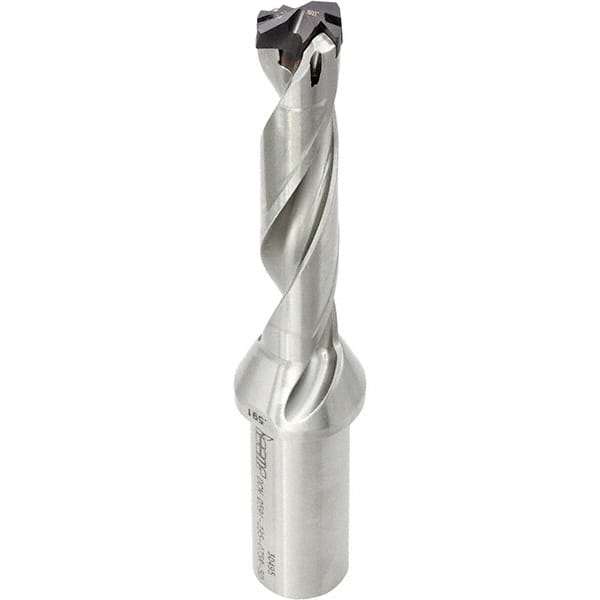

Iscar - 1.102" to 1.138" Diam, 5xD, 5.51" Max Depth, 1-1/4" Shank Diam, 9.61" OAL, Replaceable-Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 50100353 Toolholder, Series SumoCham
Item #: 50100353
Brand: Iscar
Model #: 3203525
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 1.1020 |
| Maximum Drill Diameter (Decimal Inch) | 1.1380 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 5.5100 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | FCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN A |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 7.2500 |
| Overall Length (Decimal Inch) | 9.6100 |
| Shank Length (Decimal Inch) | 2.3600 |
